Engine Oil Lubrication
WARNING: This page is about a different variant/trim than selected.

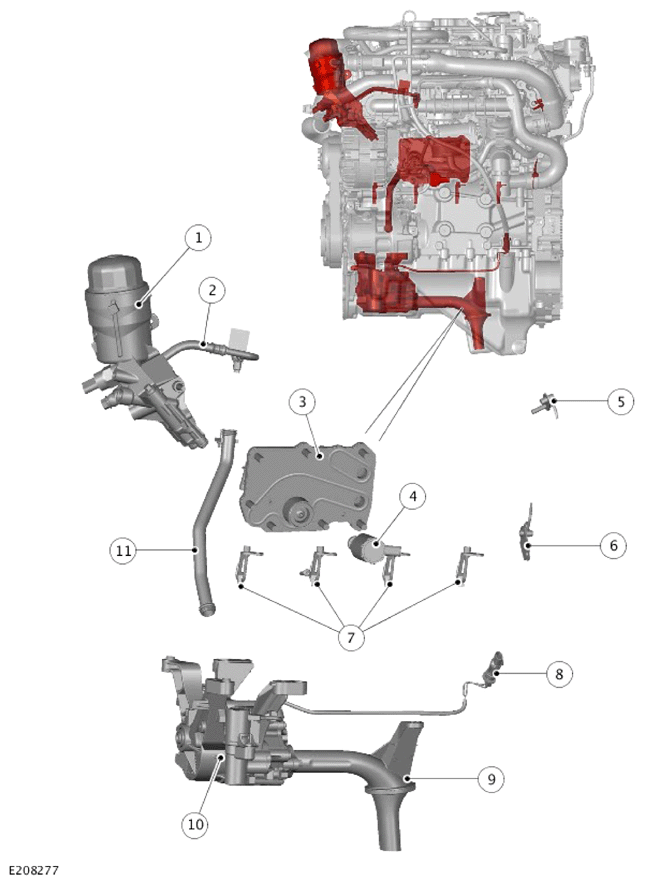

Lubrication System Components
| ITEM | DESCRIPTION |
|---|---|
| 1 | Oil filter and housing |
| 2 | Oil supply pipe - Turbocharger |
| 3 | Engine oil cooler |
| 4 | Piston cooling oil jets solenoid |
| 5 | Secondary timing chain oil jet |
| 6 | Primary timing chain oil jet |
| 7 | Piston cooling oil jet (quantity 4) |
| 8 | Variable flow oil pump solenoid electrical connector |
| 9 | Variable flow oil pump inlet pipe |
| 10 | Variable flow oil pump with integral vacuum pump |
| 11 | Oil return pipe - Turbocharger |
