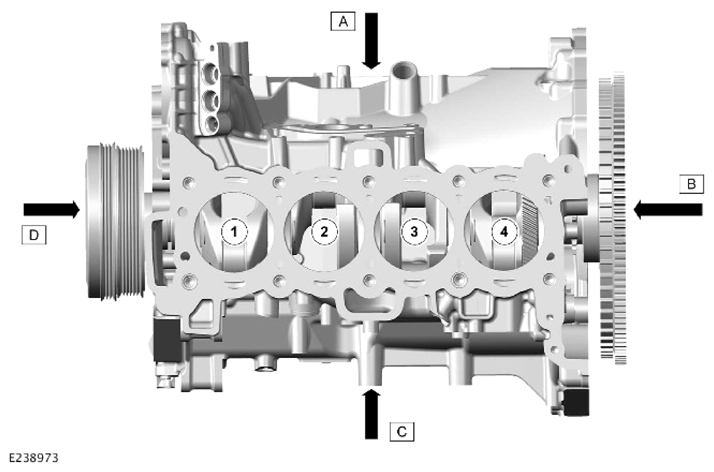

Cylinder Numbering
WARNING: This page is about a different variant/trim than selected.
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
| ITEM |
DESCRIPTION |
| A |
Right of the engine |
| B |
Rear of the engine |
| C |
Left of the engine |
| D |
Front of the engine |
| 1 |
Number 1 cylinder |
| 2 |
Number 2 cylinder |
| 3 |
Number 3 cylinder |
| 4 |
Number 4 cylinder |
The cylinders are numbered as shown, with cylinder 1 at the front of the engine
