Underbody Fuel Line (G2266452): Removal
WARNING: This page is about a different variant/trim than selected.
WARNING:
Place the vehicle in a well ventilated, quarantined area and arrange ' No Smoking/Petrol Fumes' signs about the vehicle.
CAUTION:
Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.
NOTE:
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- Before working on the fuel system make sure to study the fuel system health and safety information.
Refer to: PETROL AND PETROL-ETHANOL FUEL SYSTEMS HEALTH AND SAFETY PRECAUTIONS
- Release the fuel pressure.
Refer to: FUEL SYSTEM PRESSURE RELEASE
- Disconnect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
- Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING

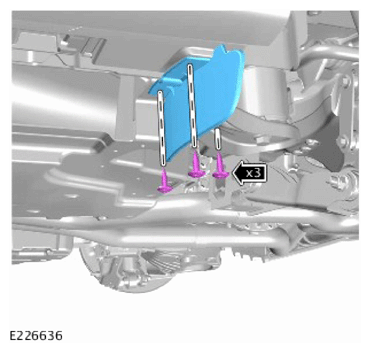

- Remove the 3 clips.
- Remove the wheel arch air deflector.

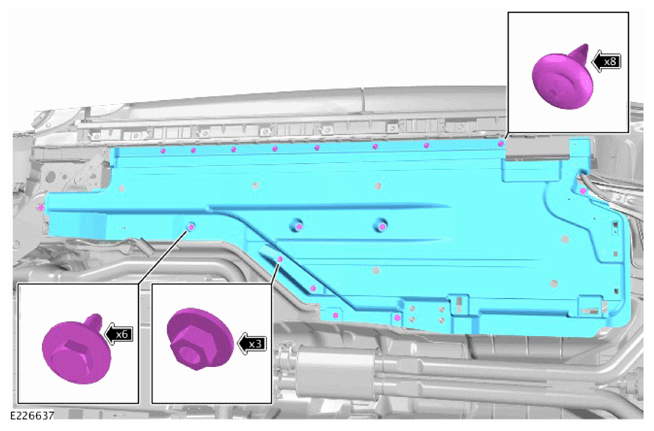

- Remove the 8 clips.
- Remove the 6 bolts.
- Remove the 3 nuts.
- Remove the body undershield.
-
WARNING: Be prepared to collect escaping fuel.

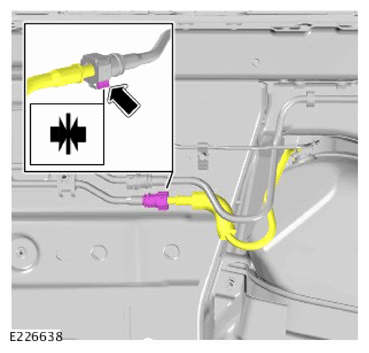

Disconnect the fuel line.
-
WARNING: Be prepared to collect escaping fuel.

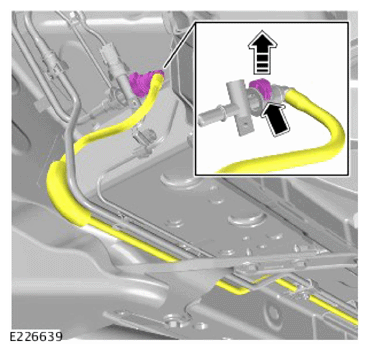

Disconnect the fuel line.
-
WARNING: Be prepared to collect escaping fuel.

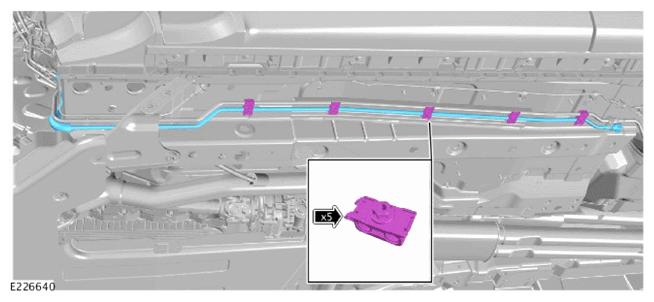

- Release the 5 retainers.
- Remove the underbody fuel line.
