Fuel Tank Filler Pipe (G2271290): Removal

WARNING: This page is about a different variant/trim than selected.

WARNING: Be prepared to collect escaping fuel.

CAUTION: Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Always follow the fuel system health and safety precautions when doing any repairs to the fuel system.
Refer to: PETROL AND PETROL-ETHANOL FUEL SYSTEMS HEALTH AND SAFETY PRECAUTIONS
Raise and support the vehicle on a suitable 2-post lift.
Refer to: LIFTING
Disconnect the 12V system.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
Drain the fuel tank.
Refer to: FUEL TANK DRAINING - V8 S/C 5.0L PETROL
Remove the rear right wheel arch liner.
Refer to: REAR WHEEL ARCH LINER
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

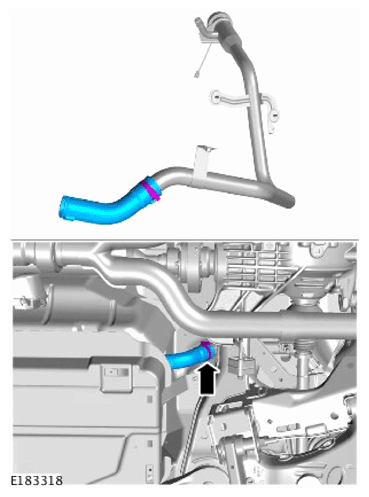

- Release the clamp.
- Disconnect the hose from the fuel tank.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

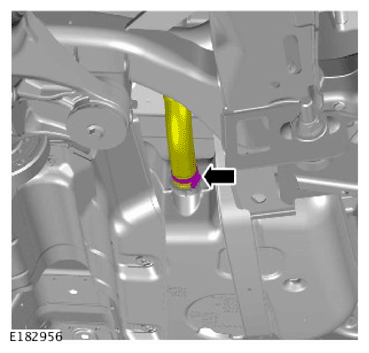

- Release the clamp.
- Remove the hose from the fuel tank filler pipe.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

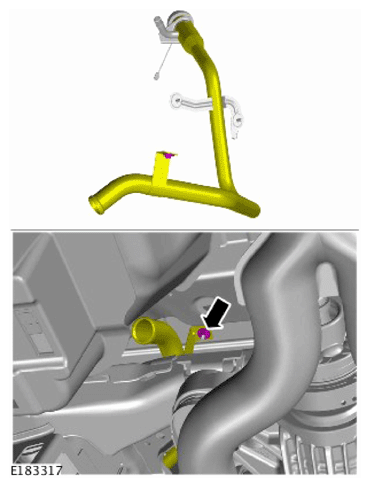

Remove the fuel tank filler pipe retaining nut.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

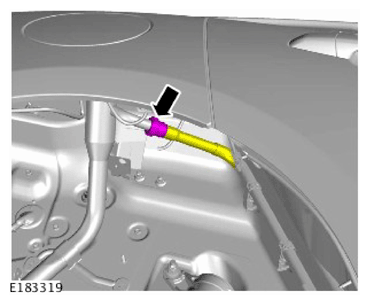

Disconnect the breather from the fuel tank filler pipe.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

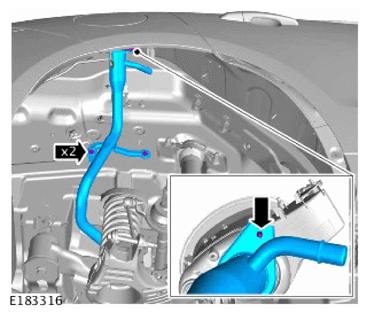

- Remove the 2 fuel tank filler pipe retaining bolts.
- Release the retaining clip.
- Remove the fuel tank filler pipe.
