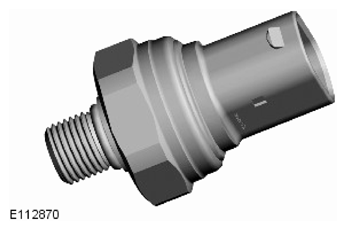

Fuel Pressure Sensor - Low Pressure Fuel System
WARNING: This page is about a different variant/trim than selected.
The fuel pressure sensor of the Low Pressure (LP) fuel system is located on a bracket behind the front left wheel arch liner. It is located in a connector between the fuel delivery pipe from the fuel pump module and the LP delivery pipe to the High Pressure (HP) fuel pumps. The fuel pressure sensor measures the fuel pressure being supplied from the fuel tank mounted fuel pump module to the HP fuel pumps.
