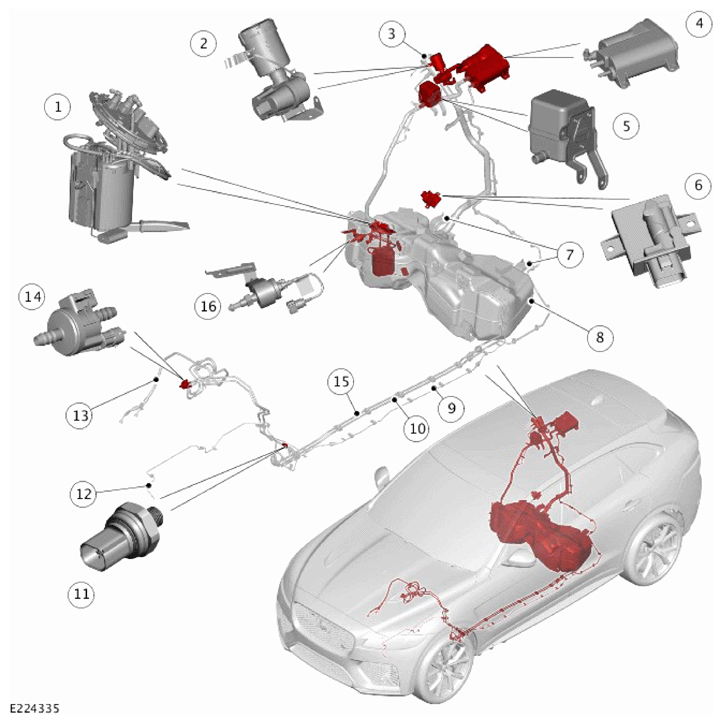

Component Location - 2 Of 2 - North AMERICAN Specification Vehicles Only
WARNING: This page is about a different variant/trim than selected.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Fuel pump module |
| 2 | Diagnostic Module Tank Leakage (DMTL) assembly |
| 3 | Fuel filler assembly |
| 4 | Evaporative emissions canister |
| 5 | Evaporative emissions canister breather |
| 6 | Fuel Pump Driver Module (FPDM) |
| 7 | Fuel tank support strap (2 off) |
| 8 | Fuel tank assembly |
| 9 | Fuel delivery line to Fuel Fired Booster Heater (FFBH) (if equipped) |
| 10 | Fuel vapor pipe to purge valve |
| 11 | Fuel Low Pressure (LP) sensor |
| 12 | Fuel delivery line to FFBH (if equipped) |
| 13 | High Pressure (HP) fuel line |
| 14 | Purge valve |
| 15 | LP fuel line |
| 16 | FFBH fuel pump (if equipped) |
