Variable Camshaft Timing Solenoid (G2327714): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

If this component is being renewed because of a customer complaint, make sure to follow the electronic engine control system 'Diagnosis and Testing' procedure.
Refer to: DIAGNOSIS AND TESTING .
Remove the engine cover.
Refer to: ENGINE COVER - INGENIUM I4 2.0L PETROL .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

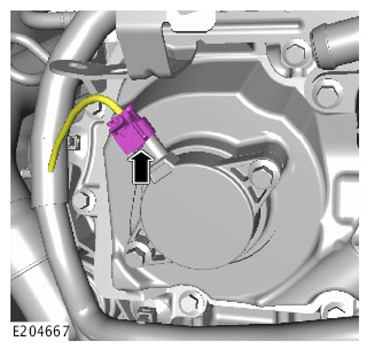

Disconnect the electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

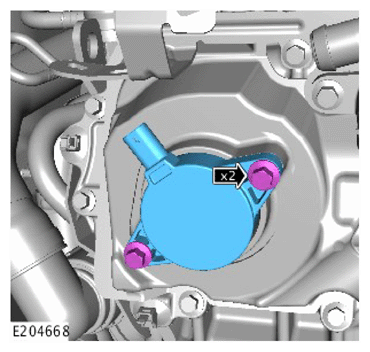

- Remove the 2 bolts.
- Remove the Variable Camshaft Timing (VCT) solenoid.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

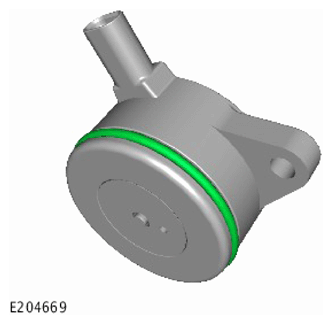

Examine the O-ring seal replace if damaged or worn.
