Variable Camshaft Timing Solenoid (G2327714): Installation

WARNING: This page is about a different variant/trim than selected.

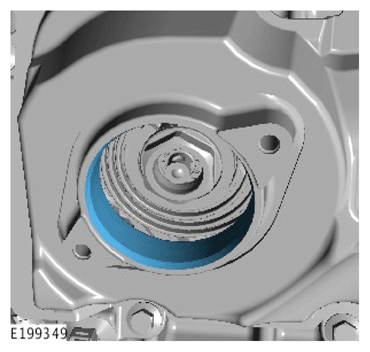

  1. G15622640Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Lubricate the VCT  solenoid bore with clean engine oil.

    • Install the VCT  solenoid.
    • Install and tighten the 2 bolts.

      Torque  : 9 Nm

  3. Connect the electrical connector.
  4. Install the engine cover.

    Refer to: ENGINE COVER - INGENIUM I4 2.0L PETROL .
