Mass Air Flow Sensor (G1998409): Removal

WARNING: This page is about a different variant/trim than selected.
NOTE:
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.

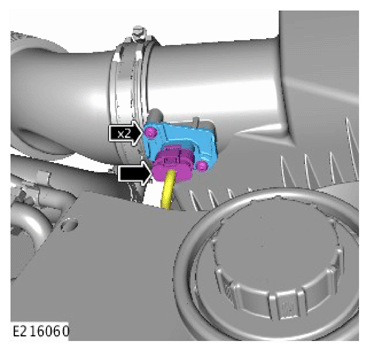

  1. G15622592Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the Mass Air Flow (MAF) sensor.
