Front Knock Sensor (G2031025): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Disconnect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT (G2623442) .
Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING .
Remove the generator.
Refer to: GENERATOR (G2027796) .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

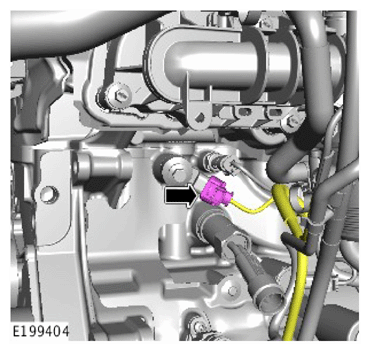

Disconnect the electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

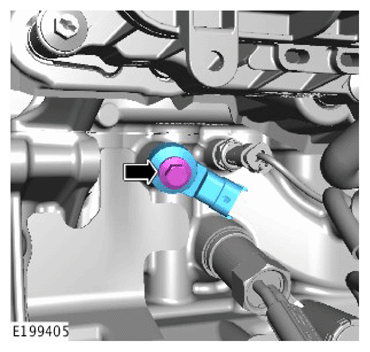

Remove the knock sensor.
