Belt Integrated Starter Generator - If Equipped
WARNING: This page is about a different variant/trim than selected.

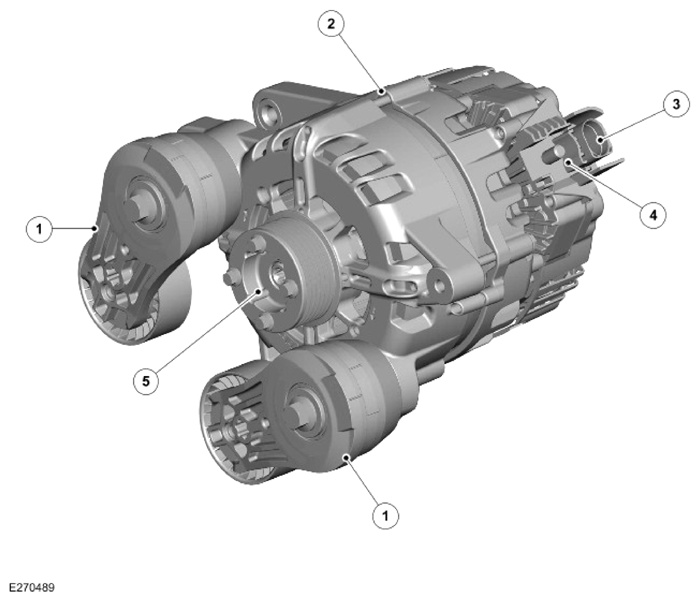

| ITEM | DESCRIPTION |
|---|---|
| 1 | BISG drive belt tensioner (quantity 2) |
| 2 | BISG |
| 3 | Wiring harness connector |
| 4 | Battery positive terminal |
| 5 | BISG pulley |
The BISG is located on the left of the engine towards the front. The BISG is connected to the crankshaft pulley by the BISG drive belt.
The BISG is controlled by the PCM through the High Speed (HS) Controller Area Network (CAN) power mode zero systems bus.
For additional information, Refer to: BELT INTEGRATED STARTER GENERATOR
