Component Location - 3 Of 3 - All Vehicles
WARNING: This page is about a different variant/trim than selected.
NOTE:

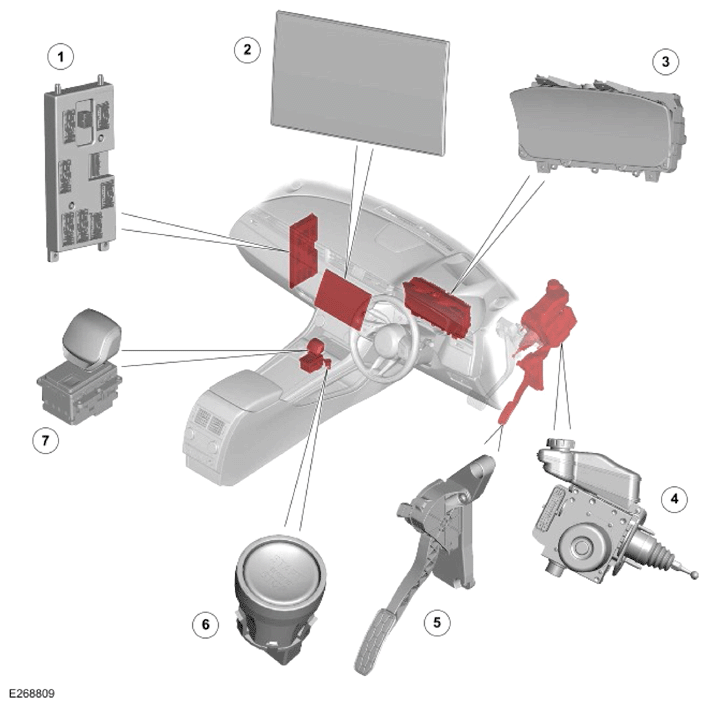

Right Hand Drive (RHD) vehicle is shown, Left Hand Drive (LHD) vehicle is similar.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Body Control Module (BCM)/Gateway Module A (GWM) |
| 2 | Interactive Display Module 'A' (IDMA) |
| 3 | Instrument Panel Cluster Control Module (IPC) |
| 4 | Integrated Power Brake |
| 5 | Accelerator Pedal Position (APP) |
| 6 | Ignition switch |
| 7 | Transmission Control Switch (TCS) |
