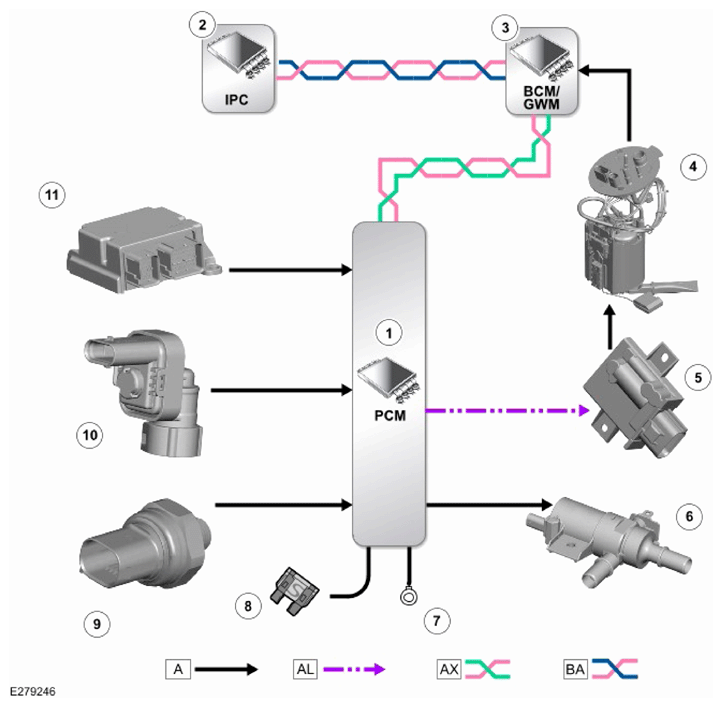

Control Diagram
WARNING: This page is about a different variant/trim than selected.
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
A = HARDWIRED: AL = PWM : AX = FLEXRAY: BA = HS CAN HMI SYSTEMS BUS.
| ITEM |
DESCRIPTION |
| 1 |
PCM |
| 2 |
IPC |
| 3 |
BCM
/GWM |
| 4 |
LP
fuel pump assembly |
| 5 |
FPDM |
| 6 |
Fuel tank isolation valve (PHEV
only) |
| 7 |
Ground |
| 8 |
Power supply |
| 9 |
Low fuel pressure sensor |
| 10 |
Fuel tank pressure sensor (PHEV
only) |
| 11 |
RCM
- Crash signal |
