Component Location - 3 Of 3 - Plug-In Hybrid Electric Vehicles Only
WARNING: This page is about a different variant/trim than selected.

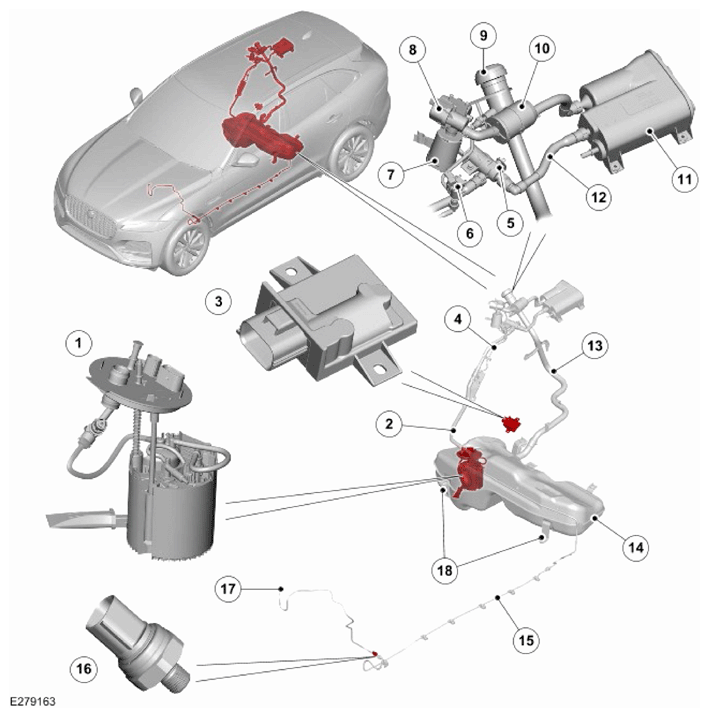

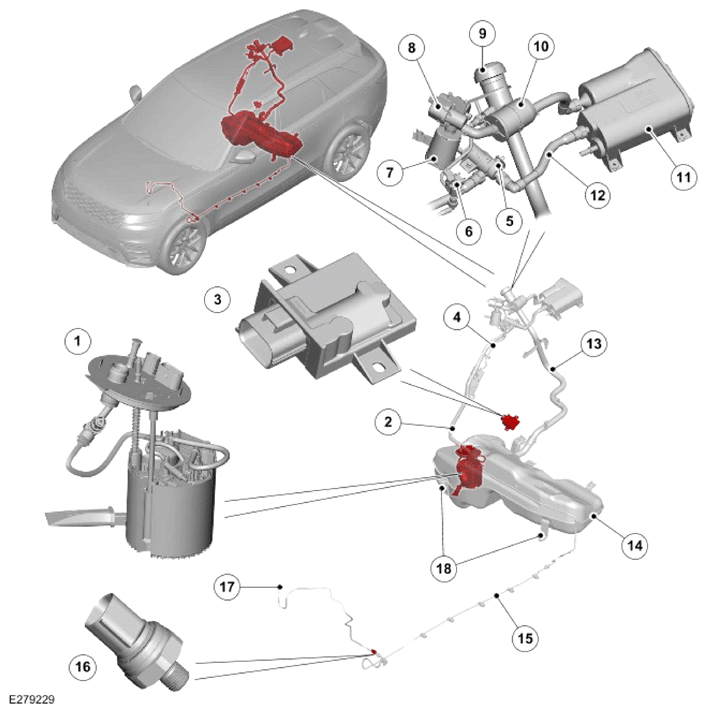

| ITEM | DESCRIPTION |
|---|---|
| 1 | LP fuel pump assembly |
| 2 | Fuel vapor pipe - From fuel tank breather |
| 3 | FPDM |
| 4 | Fuel tank breather pipe |
| 5 | Fuel tank isolation valve |
| 6 | Fuel tank pressure sensor |
| 7 | Evaporative emission canister air filter |
| 8 | Diagnostic Module Tank Leakage (DMTL) pump |
| 9 | Fuel filler cap |
| 10 | DMTL filter |
| 11 | Evaporative emission canister |
| 12 | Fuel vapor pipe - To evaporative emission canister |
| 13 | Fuel filler pipe |
| 14 | Fuel tank |
| 15 | Fuel supply line - To HP fuel pump |
| 16 | Low fuel pressure sensor |
| 17 | Fuel supply line connection - To HP fuel pump |
| 18 | Fuel tank support strap (quantity 2) |
