Coolant Pump (G2244107): Removal

WARNING: This page is about a different variant/trim than selected.

CAUTION: Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all components must be sealed.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
Disconnect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
Partially drain the cooling system.
Refer to: COOLING SYSTEM DRAINING AND VACUUM FILLING
Remove the air filter outlet pipe T-connector.
Refer to: AIR FILTER OUTLET PIPE T-CONNECTOR
Remove the left air filter housing.
Refer to: LEFT AIR FILTER HOUSING
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

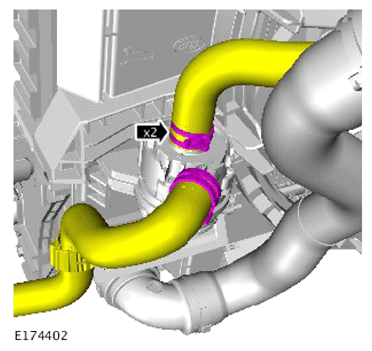

Disconnect the 2 coolant hoses from the coolant pump.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

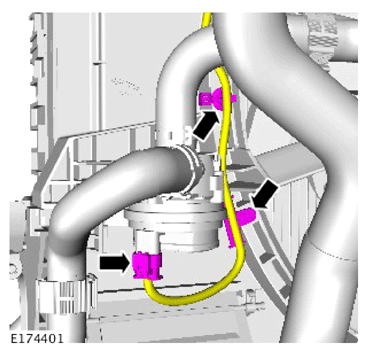

Disconnect the electrical connector from the coolant pump and release the 2 clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

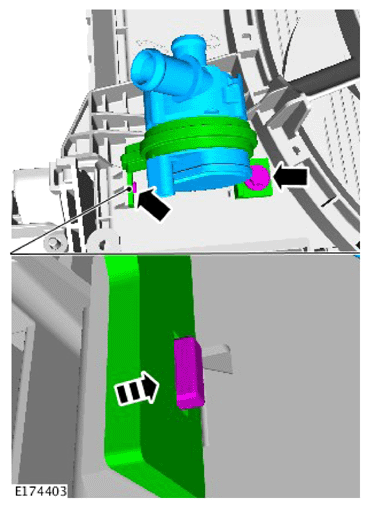

Remove the bolt and release the coolant pump.
