Coolant Expansion Tank (G2760192): Removal

WARNING: This page is about a different variant/trim than selected.

WARNING: Make sure the engine cooling system is cool prior to doing this procedure.

CAUTION: Engine coolant will damage the paint finished surfaces. If spilled, immediately remove the coolant and clean the area with water.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

See Figure

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

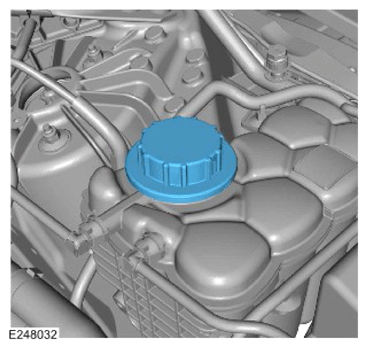

- Remove the coolant expansion tank filler cap.
- Use a suitable syringe to remove as much coolant fluid as possible from the coolant expansion tank.
See Figure
CAUTION: Take extra care not to damage the component.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

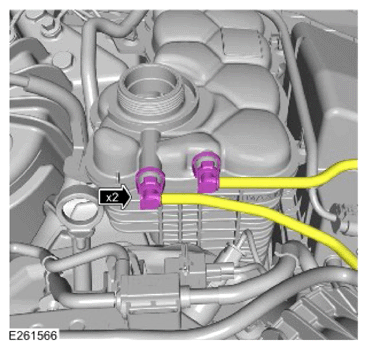

Disconnect the 2 coolant pipe connectors.
See Figure

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

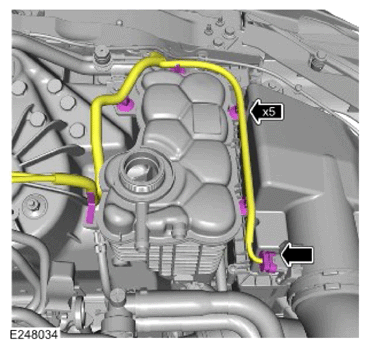

- Disconnect the electrical connector from the Mass Air Flow (MAF) sensor.
- Release the 5 wiring harness clips.
See Figure

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

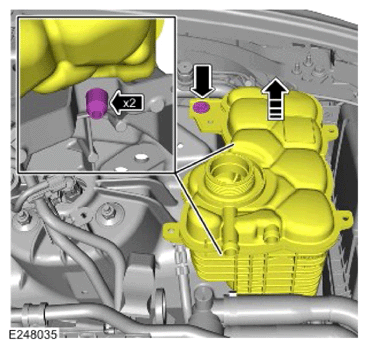

- Remove the bolt.
- Reposition the coolant expansion tank to get access to the coolant hose and the electrical connector.
See Figure
NOTE: Be prepared to collect escaping coolant.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

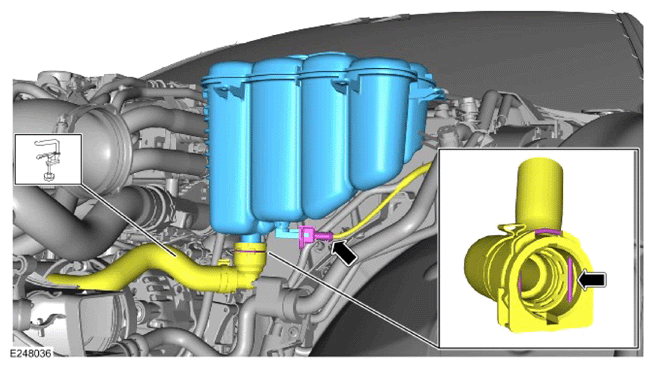

- Clamp the coolant hose with a hose clamp.
- Disconnect the coolant hose connector.
- Disconnect the electrical connector from the coolant expansion tank level sensor.
- Remove the coolant expansion tank.
See Figure
NOTE: Do not disassemble further if the component is removed for access only.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

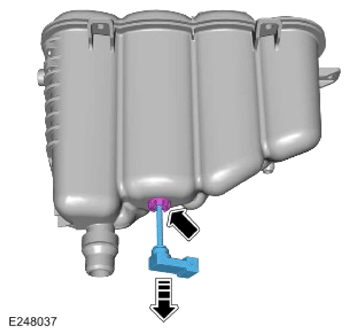

Remove the coolant expansion tank level sensor.
