Active Grille Air Shutter (G2340170): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING .
Remove the front bumper.
Refer to: FRONT BUMPER - INGENIUM I4 2.0L DIESEL AJ21/INGENIUM I4 2.0L PETROL/INGENIUM I4 2.0L PETROL - PHEV/INGENIUM I6 3.0L DIESEL/INGENIUM I6 3.0L PETROL .

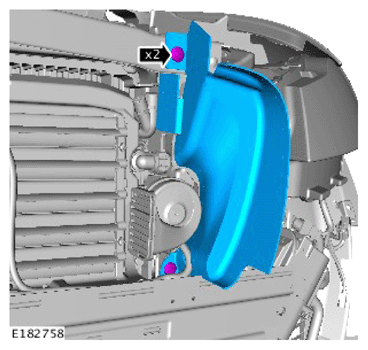

See Figure
NOTE: Repeat this step for the other side.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 2 retainers.
- Remove the air duct.

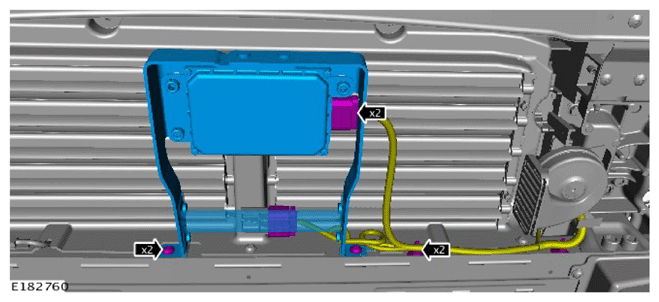

See Figure

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 2 wiring harness clips.
- Disconnect the 2 electrical connectors.
- Remove the 2 screws.
- Remove the Cruise Control Module (CCM).

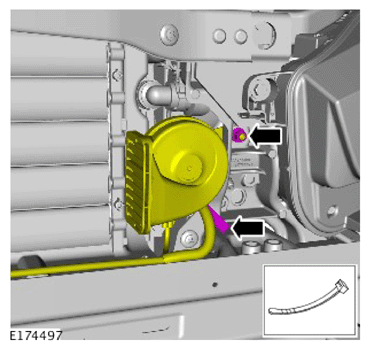

See Figure

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the wiring harness clip.
- Remove the nut.
- Remove the left horn.

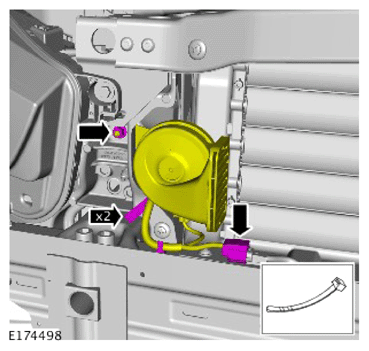

See Figure

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Disconnect the electrical connector.
- Remove the 2 wiring harness clips.
- Remove the nut.
- Remove the right horn.

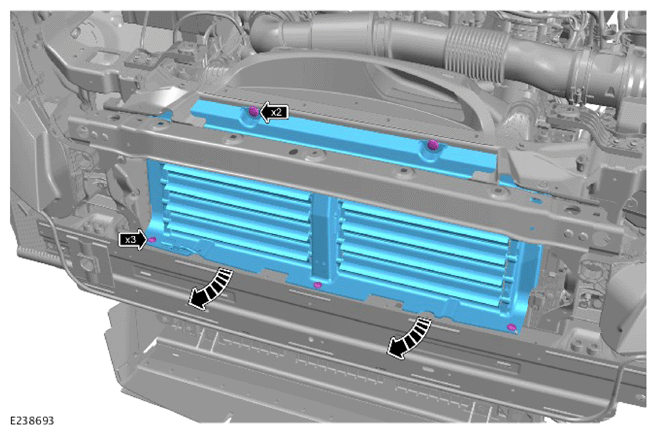

See Figure

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 2 retainers.
- Remove the 3 screws.
- Remove the active grille housing as illustrated.
