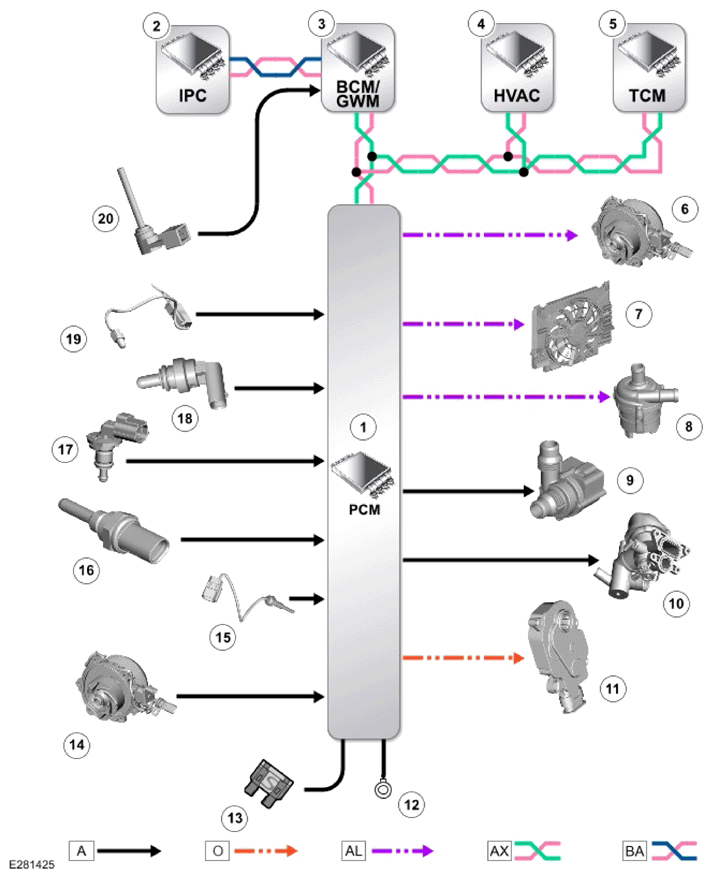

Control Diagram
WARNING: This page is about a different variant/trim than selected.
A = HARDWIRED: O = LIN : AL = PWM : AX = FLEXRAY: BA = HS CAN HMI SYSTEMS BUS.
| ITEM | DESCRIPTION |
|---|---|
| 1 | PCM |
| 2 | IPC |
| 3 | BCM /GWM |
| 4 | HVAC |
| 5 | Transmission Control Module (TCM) control module |
| 6 | Variable coolant pump |
| 7 | Electric cooling fan |
| 8 | Charge air coolant pump |
| 9 | Auxiliary coolant pump |
| 10 | Electric thermostat |
| 11 | Active grille motor (quantity 2) |
| 12 | Ground |
| 13 | Power supply |
| 14 | Variable coolant pump |
| 15 | Cylinder head temperature sensor |
| 16 | Cylinder block temperature sensor |
| 17 | Radiator outlet temperature sensor |
| 18 | ECT sensor |
| 19 | AAT sensor |
| 20 | Engine coolant level sensor |
