Turbocharger Oil Supply Tube (G2027778): Notes

WARNING: This page is about a different variant/trim than selected.

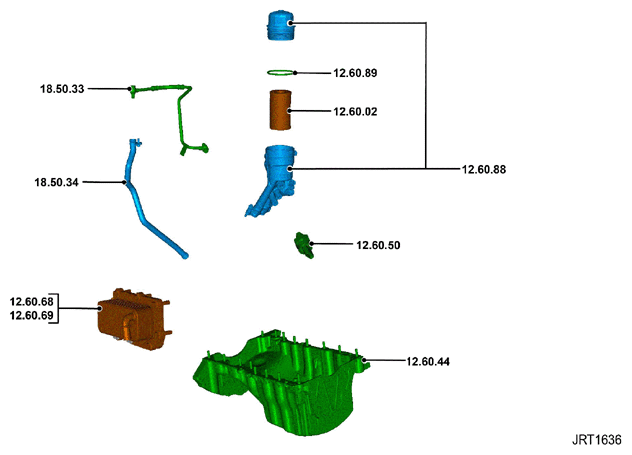

18.50.33 TURBOCHARGER OIL SUPPLY PIPE - RENEW 2000 CC, AJ21, DIESEL 0.40
G15621377Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

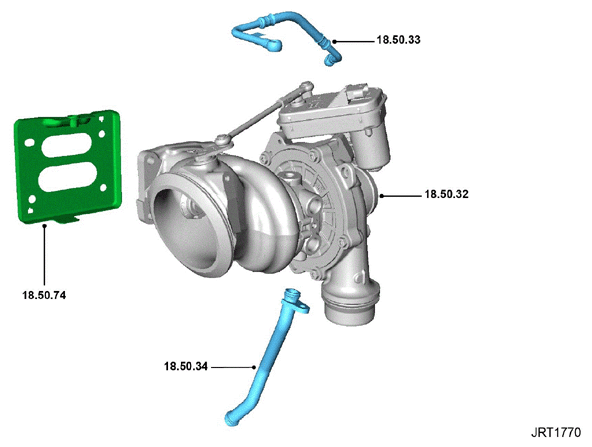

18.50.33 TURBOCHARGER OIL SUPPLY PIPE - RENEW 2000 CC, INGENIUM PETROL 0.20
G15621378Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

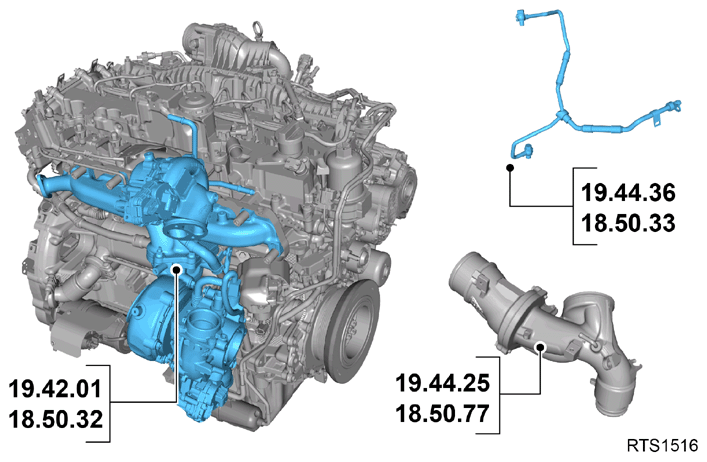

18.50.33 TURBOCHARGER OIL SUPPLY PIPE - RENEW 3000 CC, INGENIUM DIESEL 0.80
G15621379Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
18.50.33 TURBOCHARGER OIL SUPPLY PIPE - RENEW 3000 CC, INGENIUM PETROL 0.50
