Turbocharger (G2270371): Installation

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

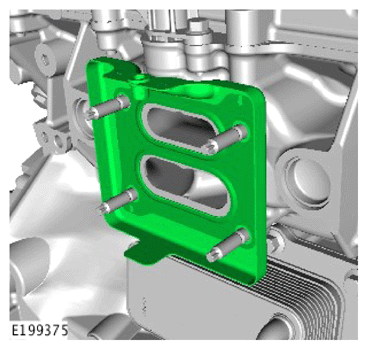

Install a new turbocharger gasket.

Renew Part: Turbocharger to exhaust manifold gasket Quantity: 1  .

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

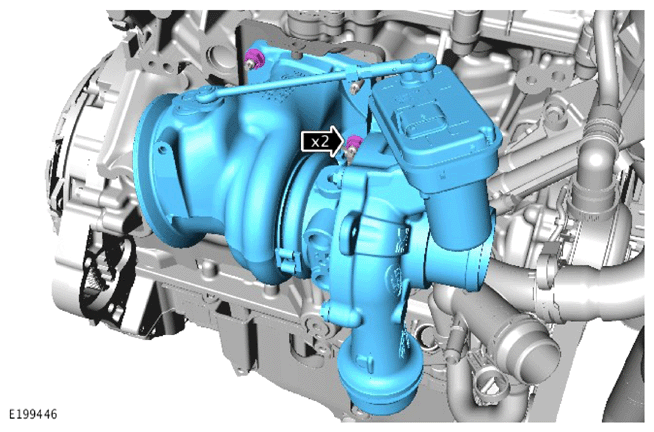

• Install the turbocharger.
• Install and tighten the 2 new nuts.

  Renew Part: Exhaust manifold to turbocharger nuts Quantity: 2  .

  Torque  : 10 Nm

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

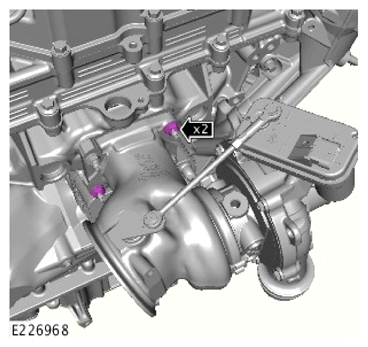

Install and tighten the 2 new nuts.

Renew Part: Exhaust manifold to turbocharger nuts Quantity: 2  .

Torque  : 10 Nm

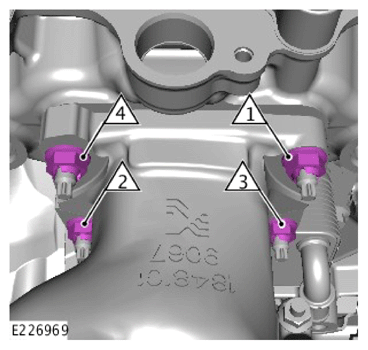

Fig 1: Exhaust Manifold to Turbocharger Tightening Sequence

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Tighten the nuts in the sequence illustrated.

Torque  : 25 Nm

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

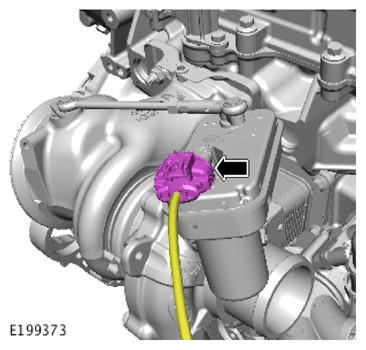

Connect the electrical connector.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

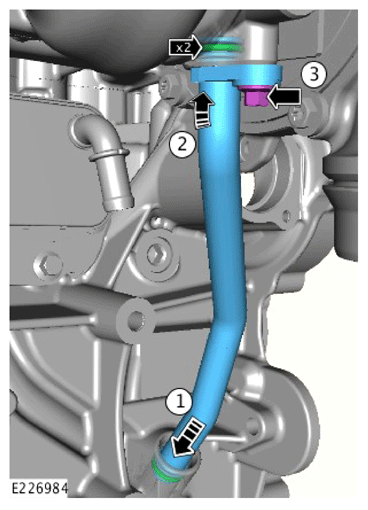

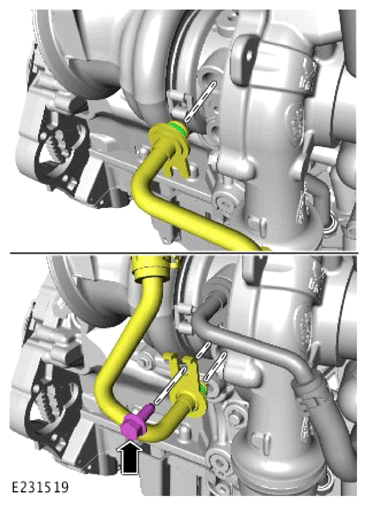

• Install 2 new O-ring seals.

  Renew Part: Turbocharger oil return pipe seals Quantity: 2  .

• Install the pipe in the sequence illustrated.
• Install and tighten the bolt.

  Torque  : 11 Nm

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

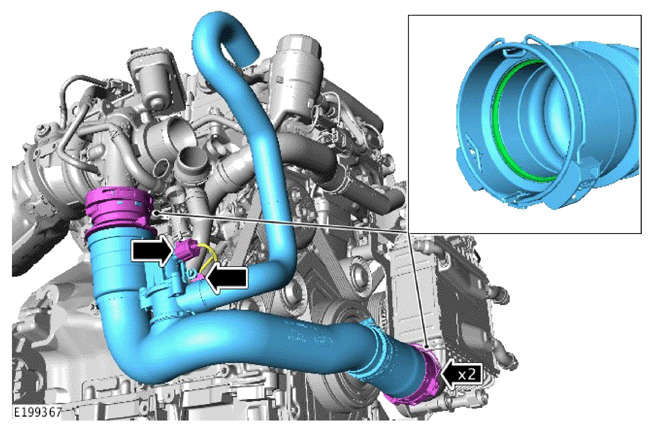

• Connect the pipe.
• Connect the electrical connector.
• Install the clip.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

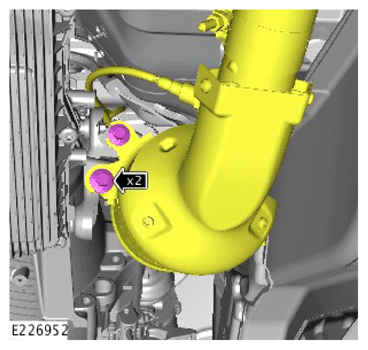

Install and tighten the two bolts.

Torque  : 25 Nm

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

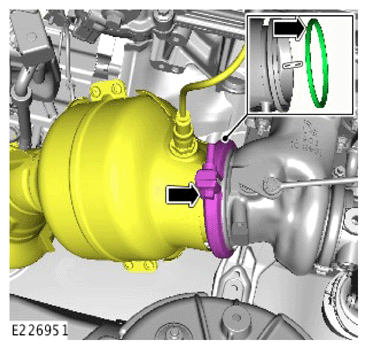

• Install a new gasket.

  Renew Part: Exhaust pipe to turbocharger gasket Quantity: 1  .

• Install and tighten a new clamp.

  Renew Part: Front exhaust clamp Quantity: 1  .

  Torque  : 18 Nm

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

• Install the 2 pipes.
• Install and tighten the bolt.

  Torque  : 12 Nm

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

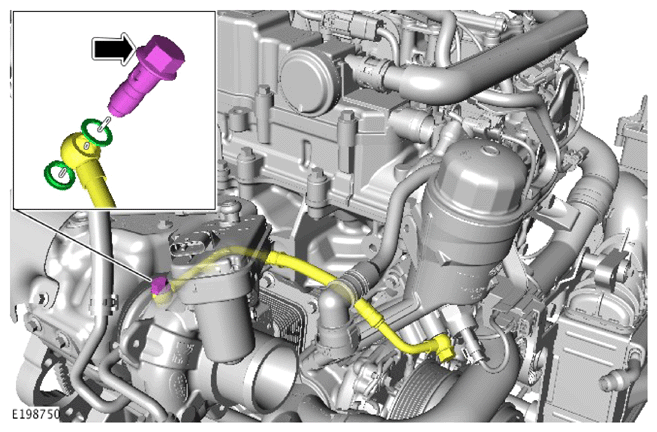

• Install 2 new washers.

  Renew Part: Turbocharger oil feed pipe banjo bolt washers Quantity: 2  .

• Install the pipe.
• Install and tighten the bolt.

  Torque  : 18 Nm

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

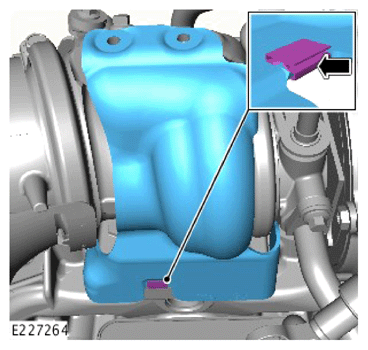

• Install the heatshield.
• Install the clip.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

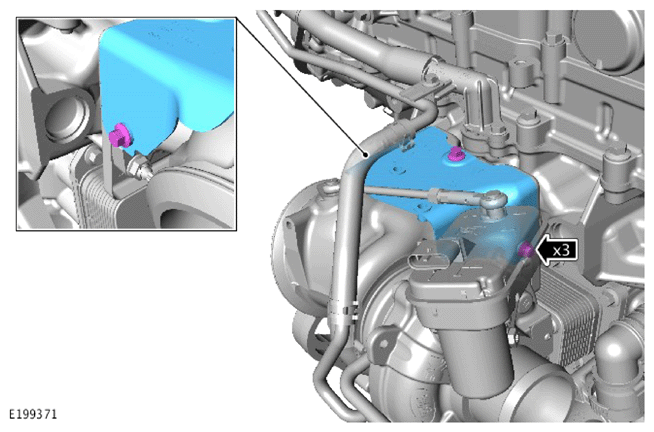

• Install the heatshield.
• Install and tighten the 3 bolts.

  Torque  : 9 Nm

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

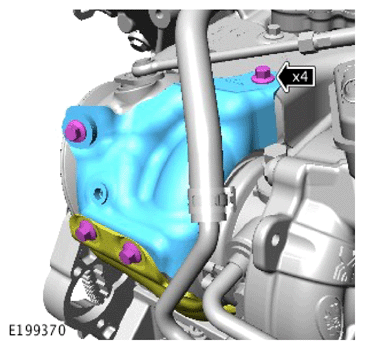

• Install the heatshield.
• Install and tighten the 4 bolts.

  Torque  : 9 Nm

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

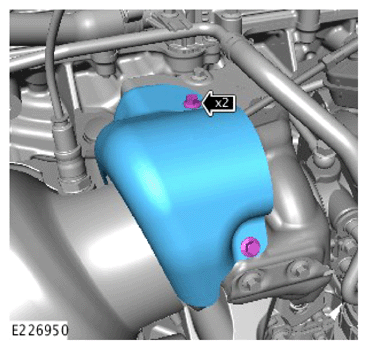

• Install the heatshield.
• Install and tighten the 2 bolts.

  Torque  : 9 Nm

Refer to: COOLING SYSTEM PARTIAL DRAINING AND VACUUM FILLING (G1998221)

Refer to: ENGINE UNDERSHIELD - INGENIUM I4 2.0L DIESEL AJ21/INGENIUM I4 2.0L PETROL/INGENIUM I6 3.0L DIESEL/INGENIUM I6 3.0L PETROL

Refer to: INTAKE AIR RESONATOR (G2020091)

Refer to: STARTUP BATTERY DISCONNECT AND CONNECT

Refer to: SPECIFICATIONS
