Turbocharger (G2058461): Description: HEATSHIELDS
WARNING: This page is about a different variant/trim than selected.

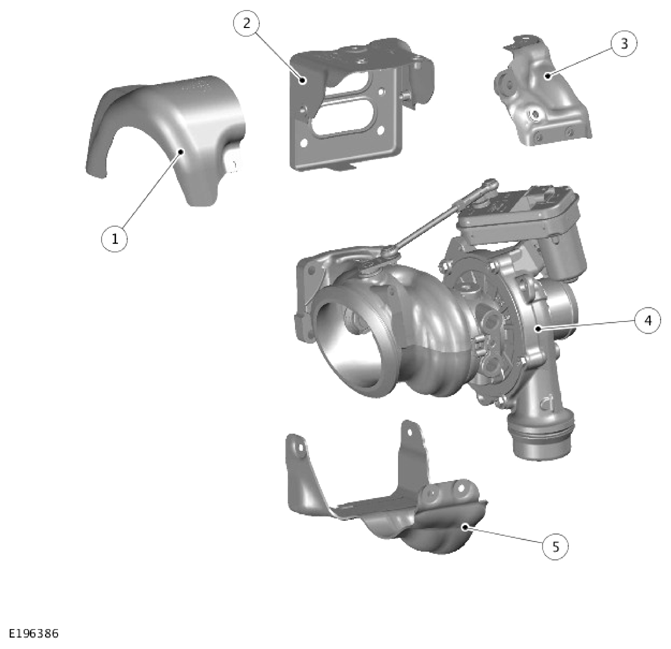

| ITEM | DESCRIPTION |
|---|---|
| 1 | Heatshield - Rear upper |
| 2 | Multi-layer steel gasket |
| 3 | Heatshield - Front upper |
| 4 | Turbocharger |
| 5 | Heatshield - Lower |
The heatshields are installed over the turbocharger to protect other components, and to prevent accidental contact with the hot exhaust components. The heatshields are fixed by bolts to the turbocharger.
