Section 2 (Fuel Charging And Controls - Turbocharger - INGENIUM I4 2.0L Petrol/INGENIUM I4 2.0L Petrol PHEV -- F-Pace/X761)
>>
Fuel Charging And Controls - Turbocharger - INGENIUM I4 2.0L Petrol/INGENIUM I4 2.0L Petrol - PHEV (G2006226)
>>
Description And Operation
>>
Turbocharger (G2058461)
>>

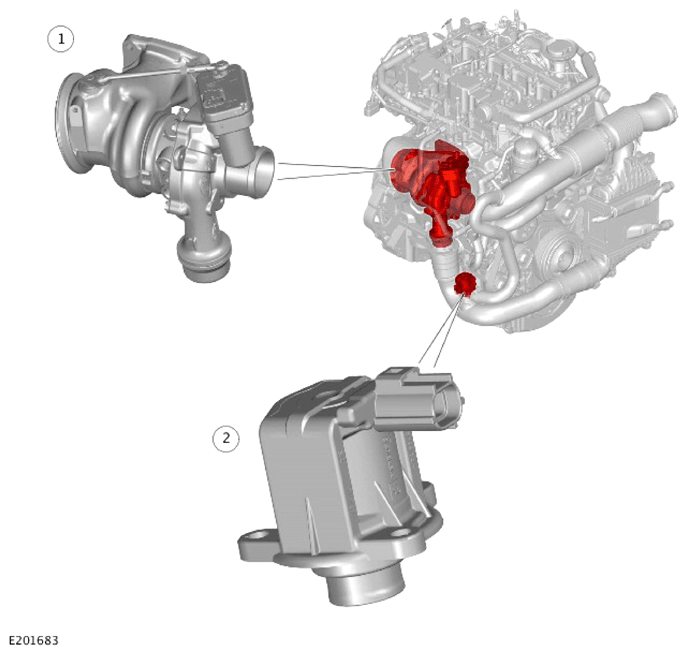

Component Location
Component Location
WARNING:
This page is about a different variant/trim than selected.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
ITEM
DESCRIPTION
1
Turbocharger
2
Compressor recirculation valve
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
