Throttle Body (G2269166): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE:

This procedure contains illustrations showing certain components removed to provide extra clarity.
This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING .
Disconnect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT .
Partially drain the cooling system.
Refer to: COOLING SYSTEM PARTIAL DRAINING AND VACUUM FILLING .
Remove the air filter outlet pipe T-connector.
Refer to: AIR FILTER OUTLET PIPE T-CONNECTOR .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

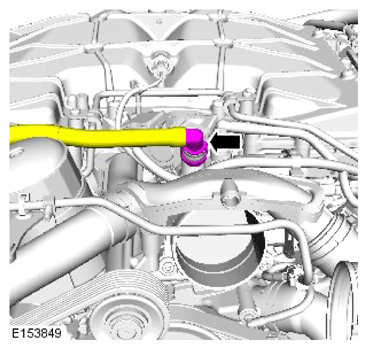

Disconnect the breather pipe from the supercharger.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

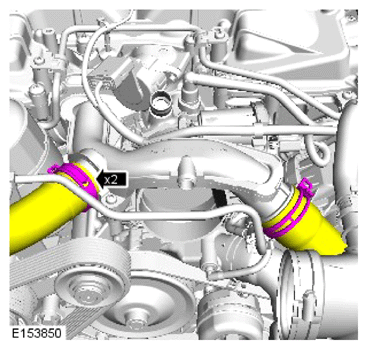

- Release the 2 clamps.
- Disconnect the 2 coolant hoses.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

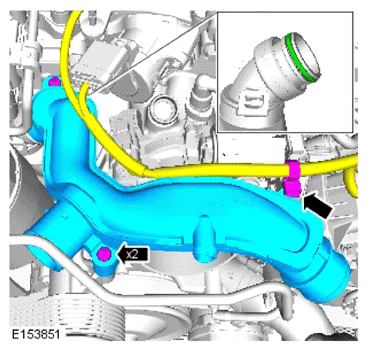

- Release the clip and position the wiring harness to one side.
- Remove the 2 bolts.
- Remove the coolant pipe.
- Remove and discard the O-ring seal.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

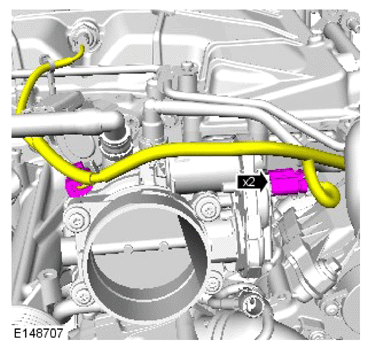

Disconnect the 2 electrical connectors.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

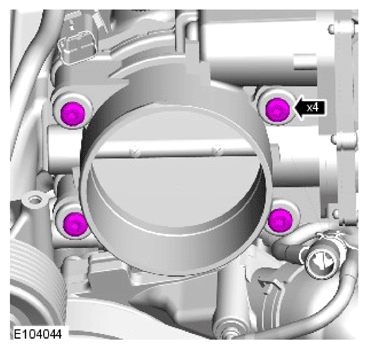

Remove the 4 bolts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

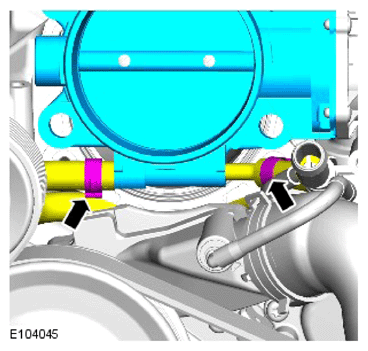

- Release the 2 clamps.
- Release the 2 coolant hoses.
- Remove the throttle body.
