Right Fuel Rail (G2244113): Installation

WARNING: This page is about a different variant/trim than selected.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

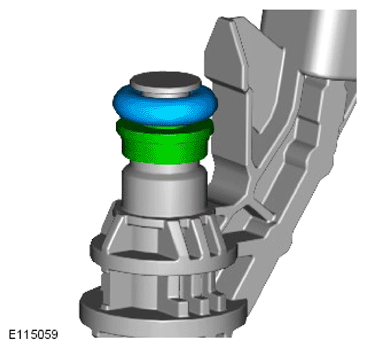

Install new fuel injector O-ring seals to the 4 fuel injectors.

Renew Part: Fuel Injector replacement kits Quantity: 4 .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

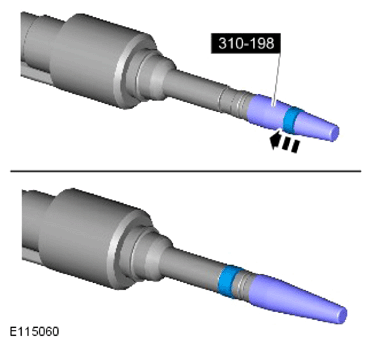

Install new Teflon™ seals on the lower tips of the 4 injectors from the fuel injector replacement kit.

Special Tool(s): 310-198
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

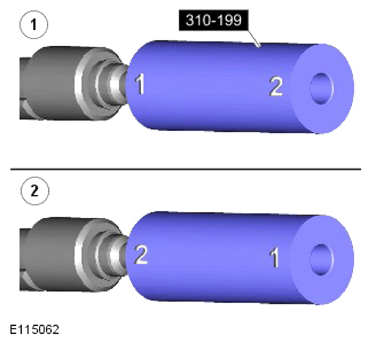

Using the special tool re-shape the Teflon™ seal.

Special Tool(s): 310-199
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

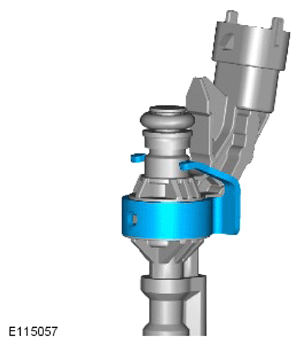

Install new fuel injector clamps to the 4 injectors from the fuel injector replacement kit.
CAUTION: If a new cylinder head has been installed then the special tool 310-200-02 without the thread must be used to install the fuel rail.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

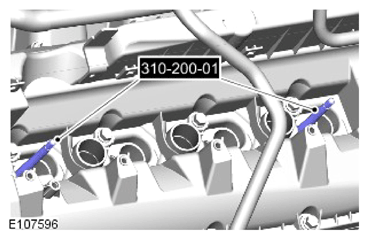

Install the special tool.

Special Tool(s): 310-200-01 , 310-200-02
CAUTION:
- Make sure that the area around the open fuel injector ports are clean and free of foreign material and lubricant prior to installing the fuel injector(s).
- When installing the fuel injector(s), make sure that the Teflon™ seal is clean and free of foreign material and lubricant.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

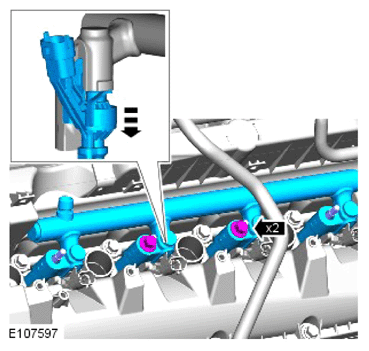

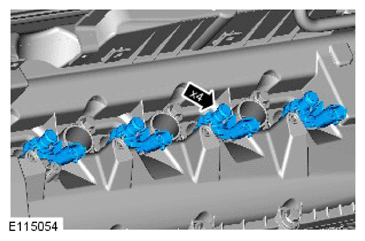

Install the 4 fuel injectors.
CAUTION:
- If new fuel injectors are installed, a new injector clamp must be installed.
- Make sure that the fuel injector is aligned and installed into the fuel rail correctly, as noted in the removal step.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Do not fully tighten the bolts at this stage.
- Lubricate the fuel injector O-ring seals with clean engine oil.

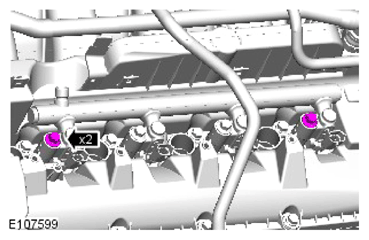

- Install the fuel rail and 2 bolts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

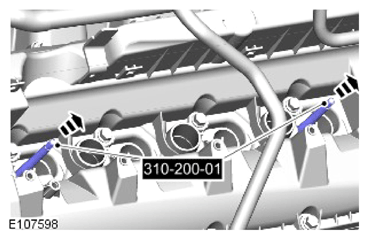

Remove the special tool.

Remove the Special Tool(s): 310-200-01 , 310-200-02
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Do not fully tighten the bolts at this stage.
- Install the 2 bolts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

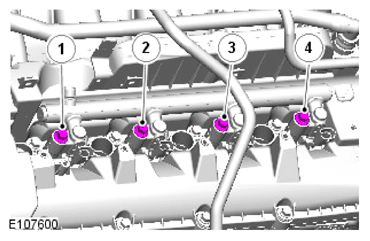

Tighten the 4 bolts in the sequence illustrated.

Torque : 30 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

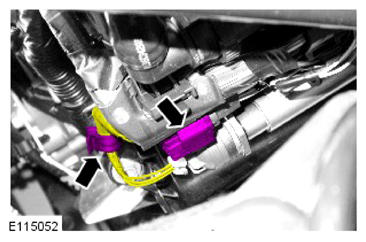

- Install the electrical connector to the fuel rail pressure sensor.
- Install the clip.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

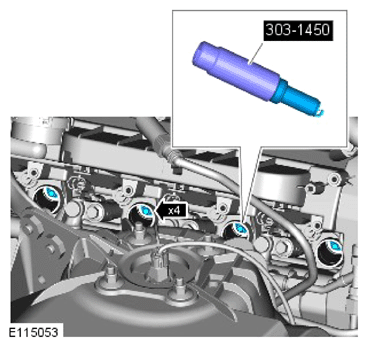

Using the special tool install the 4 spark plugs.

Special Tool(s): 303-1450

Torque : 22 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

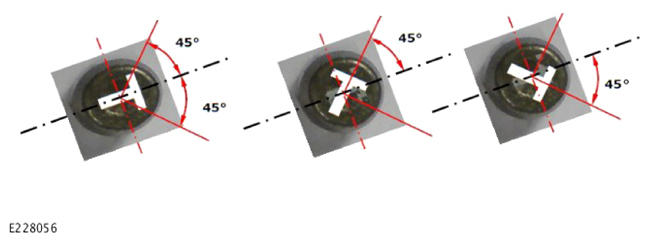

Following installation of the spark plugs in the cylinder head, visually inspect the paint mark on the terminal of the spark plug for correct orientation. The head of the T paint mark must face the fuel injector within ± 45°.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

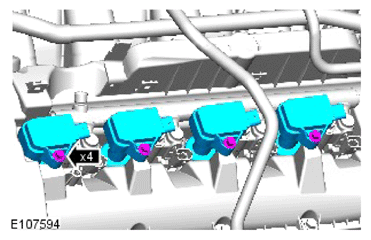

- Install the 4 ignition coils.
- Install and tighten the 4 bolts.
  Torque : 7 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

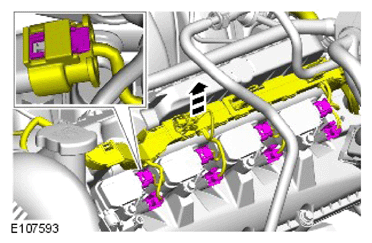

Install the 8 electrical connectors to the ignition coils and fuel injectors.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Do not fully tighten at this stage.
- Lubricate the fuel line union threads with clean engine oil.

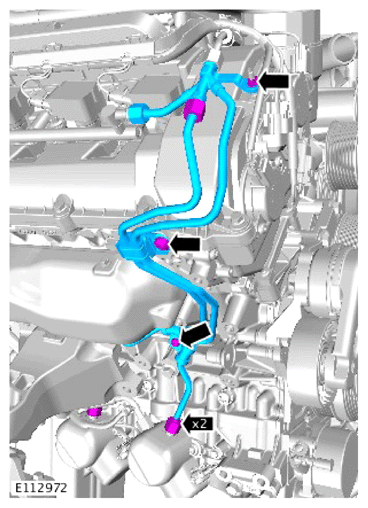

- Install a new HP fuel supply line.
  Renew Part: Fuel rail supply pipe(s) Quantity: 1 .
- Install the 2 bolts and the nut.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Do not fully tighten the fuel line union at this stage.
- Install the fuel line union to the fuel rail.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

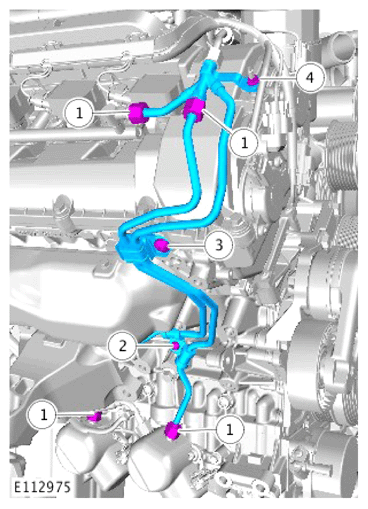

Tighten the fuel line unions, 2 bolts and nut in the sequence illustrated.

Torque

Unions (1): 21 Nm

M6 (2): 11 Nm

M8 (3): 25 Nm

M5 nut (4): 6 Nm
- Install the idler pulley.
- Install and tighten the bolt.
  Torque : 25 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

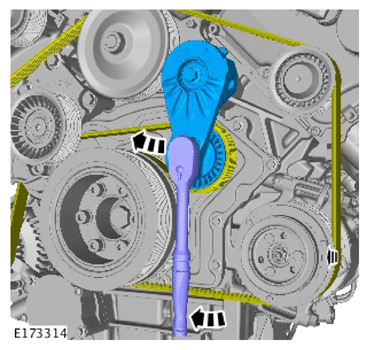

Rotate the accessory drive belt tensioner clockwise and secure the accessory drive belt to the idler pulley.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

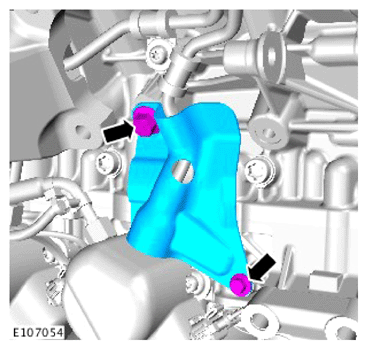

- Install the heatshield.
- Install and tighten the 2 bolts.
  Torque

  M10: 29 Nm

  M6: 11 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

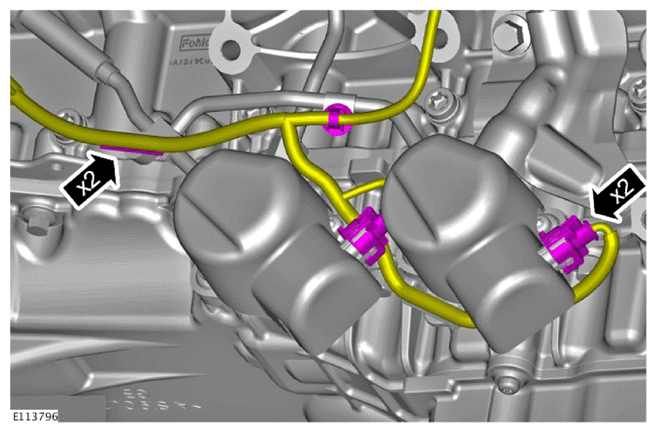

Connect the 2 electrical connectors to the HP fuel pumps and secure the 2 clips.
Install the engine undershield.
Refer to: ENGINE UNDERSHIELD - V8 S/C 5.0L PETROL .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

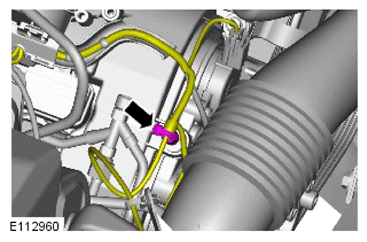

Install the wiring harness clip.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Do not fully tighten the unions and the bolts at this stage.
- Lubricate only the union threads with clean engine oil.
- Install the fuel line and the 4 bolts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Tighten the 4 bolts and the 2 fuel line unions.

Torque

Unions: 21 Nm

Bolts: 8 Nm
Install the air filter outlet pipe T-connector.
Refer to: AIR FILTER OUTLET PIPE T-CONNECTOR .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

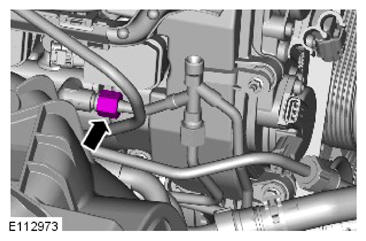

Install the clip and connect the breather.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

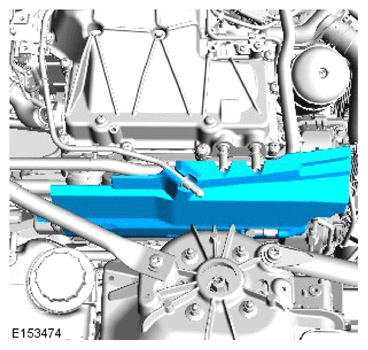

Install the Noise, Vibration and Harshness (NVH) material.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

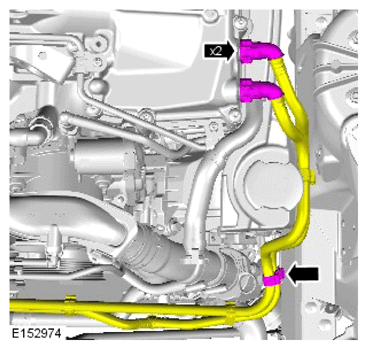

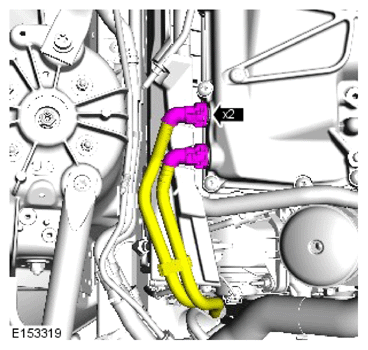

Connect the 2 right side coolant hoses to the charge air cooler.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

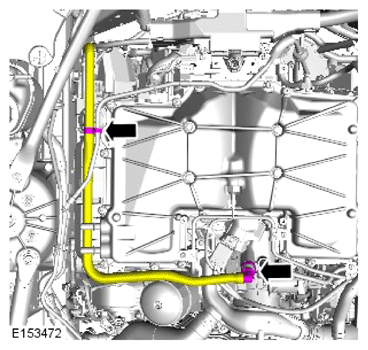

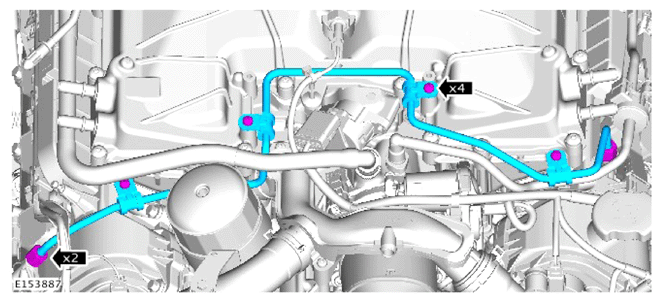

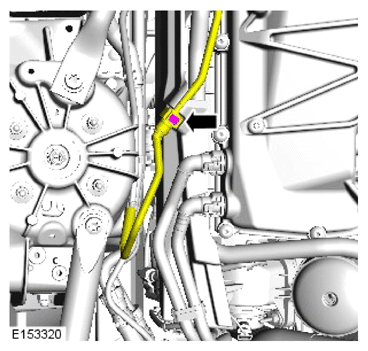

Install the vacuum pipe.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

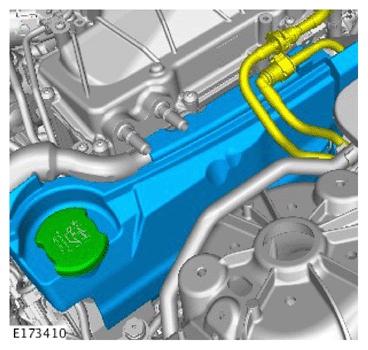

Install the NVH material and oil filler cap.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the clip and connect the 2 left side coolant hoses.
Vacuum fill the cooling system.
Refer to: COOLING SYSTEM PARTIAL DRAINING AND VACUUM FILLING .
Connect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT .
