Rear High Pressure Fuel Pump (G2268897): Removal

WARNING: This page is about a different variant/trim than selected.

WARNING: This procedure involves fuel handling. Be prepared for fuel spillage at all times and always observe fuel handling precautions. Failure to follow these instructions may result in personal injury.

CAUTION:

Make sure that tools and equipment are clean and free of foreign material and lubricant.
Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.

NOTE:

This procedure contains illustrations showing certain components removed to provide extra clarity.
This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.

Always follow the fuel system health and safety precautions when doing any repairs to the fuel system.
Refer to: PETROL AND PETROL-ETHANOL FUEL SYSTEMS HEALTH AND SAFETY PRECAUTIONS .
NOTE: Make sure the engine is warm.
- Start the engine and allow to run for 10 minutes.
- Stop the engine after 10 minutes.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Allow 10 minutes from turning the engine off before starting the oil extraction process.
- Remove the oil filler cap.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

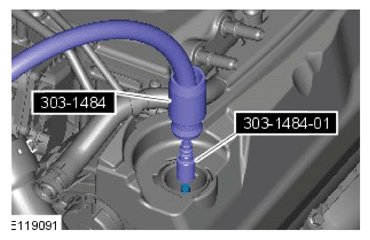

Using the special tool, drain the oil out through the oil extraction pipe.

Special Tool(s): 303-1484 , 303-1484-01
Fully drain the engine oil then remove the special tool.
Remove the Special Tool(s): 303-1484 , 303-1484-01
Partially drain the cooling system.
Refer to: COOLING SYSTEM PARTIAL DRAINING AND VACUUM FILLING .
Release the fuel pressure.
Refer to: FUEL SYSTEM PRESSURE RELEASE .
Disconnect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT .
Remove the air filter outlet pipe T-connector.
Refer to: AIR FILTER OUTLET PIPE T-CONNECTOR .
CAUTION: Be prepared to collect escaping engine coolant.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

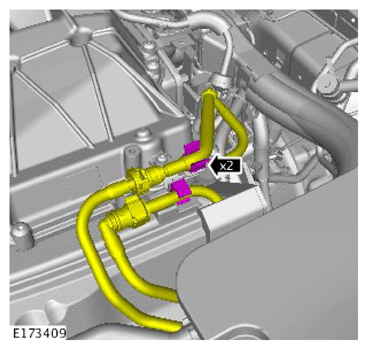

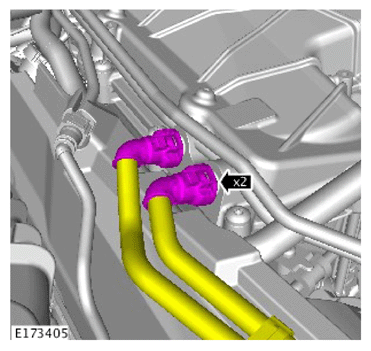

Disconnect the 2 coolant hoses from the left side of the charge air cooler.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Release the 2 pipes.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

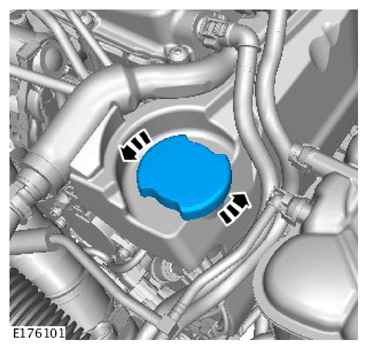

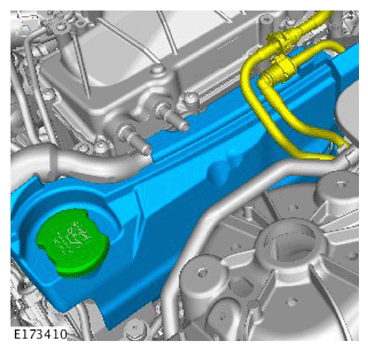

Remove the oil filler cap and Noise, Vibration and Harshness (NVH) material.
CAUTION: Be prepared to collect escaping engine coolant.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

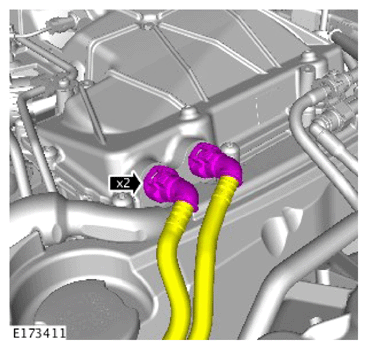

Disconnect the 2 coolant hoses from the right side of the charge air cooler.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Release the vacuum pipe from the NVH material and disconnect the union.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the NVH material.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

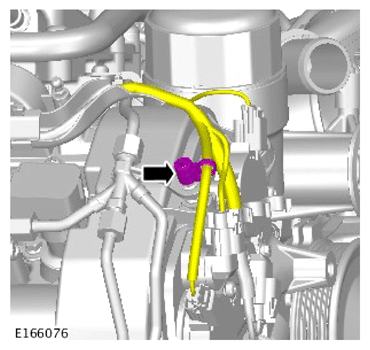

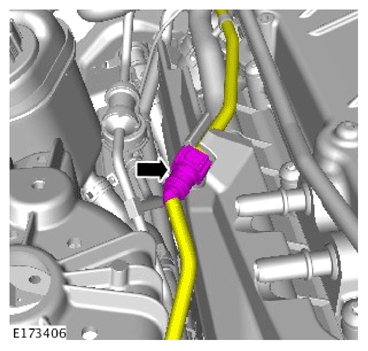

Release the wiring harness retaining clip.
Clean the fuel injectors, High Pressure (HP) fuel delivery line and surrounding areas.
Refer to: FUEL INJECTION COMPONENT CLEANING .
CAUTION: Be prepared to collect escaping fuel.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 4 bolts.
- Disconnect the 2 fuel unions.
- Remove the fuel line.
CAUTION: Be prepared to collect escaping fuel.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

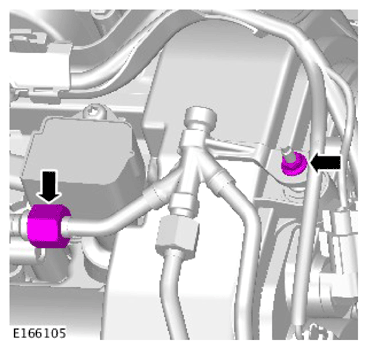

- Remove the nut.
- Release the fuel union.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the nut from the engine mount bracket.
Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING .
Remove the engine undershield.
Refer to: ENGINE UNDERSHIELD - INGENIUM I4 2.0L DIESEL AJ21/INGENIUM I4 2.0L PETROL/INGENIUM I6 3.0L DIESEL/INGENIUM I6 3.0L PETROL .
Remove the front right halfshaft.
Refer to: FRONT HALFSHAFT .
Remove the generator.
Refer to: REMOVAL AND INSTALLATION .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

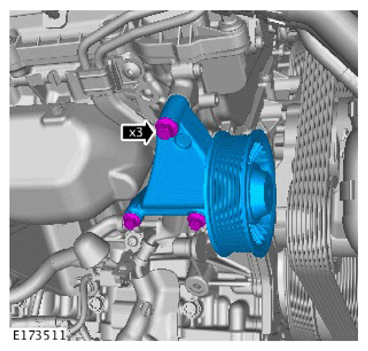

- Remove the 3 bolts.
- Remove the idler pulley.
CAUTION: Use a wooden block to protect the oil pan when supporting the engine.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

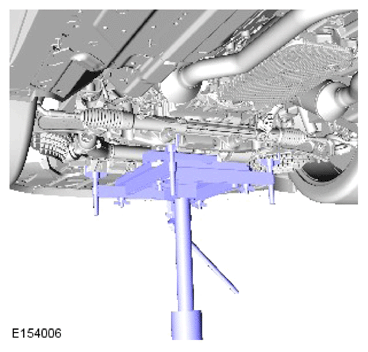

Using a transmission jack support the engine.

General Equipment: Transmission jack
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

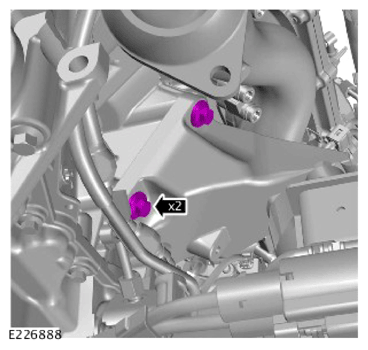

Remove the 2 bolts from the engine mount.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Release the clip from the engine mount bracket.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

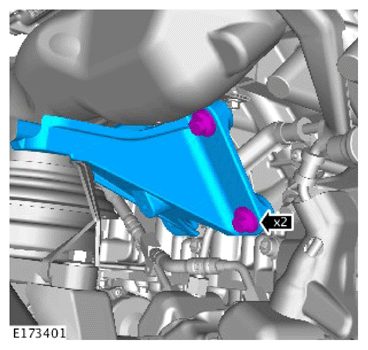

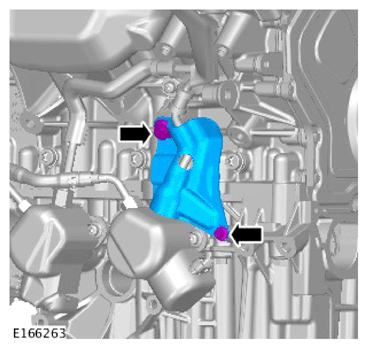

- Remove the 2 bolts.
- Remove the engine mount bracket.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

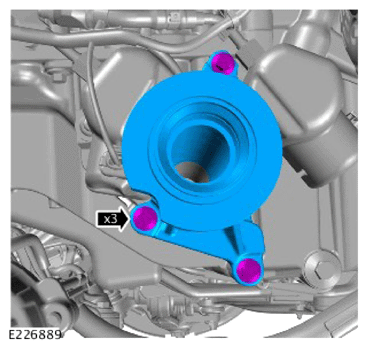

- Remove the 3 bolts.

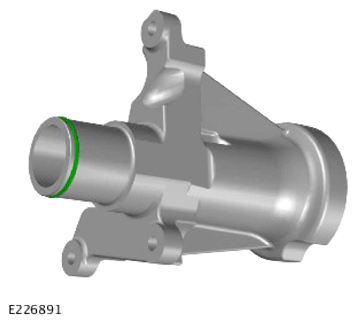

- Remove the halfshaft support bracket.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove and discard the O-ring seal.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

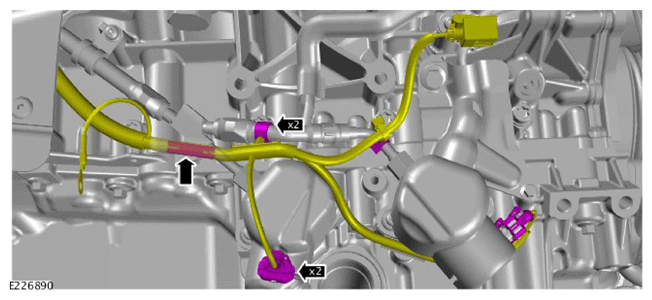

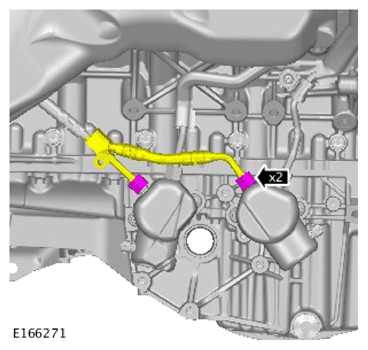

- Disconnect the 2 electrical connectors.
- Release the 3 clips.
- Position the wiring harness to one side.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 2 bolts.
- Remove the fuel line heatshield.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

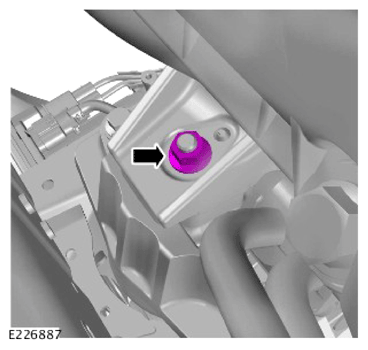

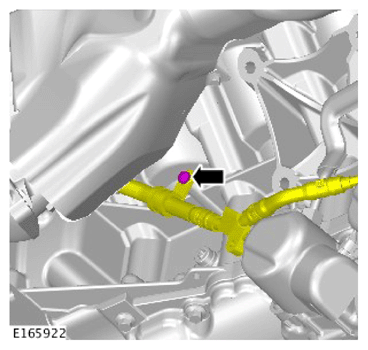

Remove the bolt.
CAUTION: Be prepared to collect escaping fuel.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

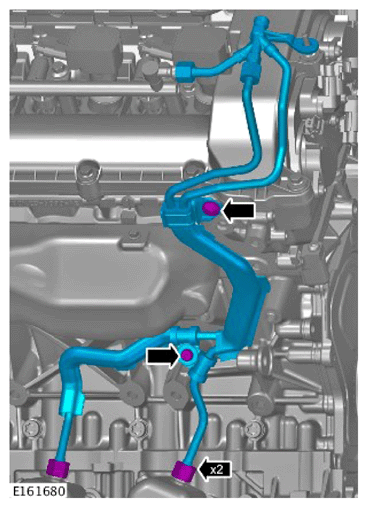

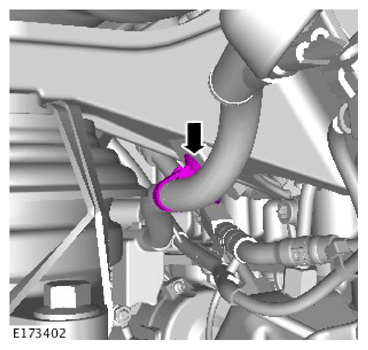

Release the 2 fuel unions.
CAUTION: Be prepared to collect escaping fuel.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

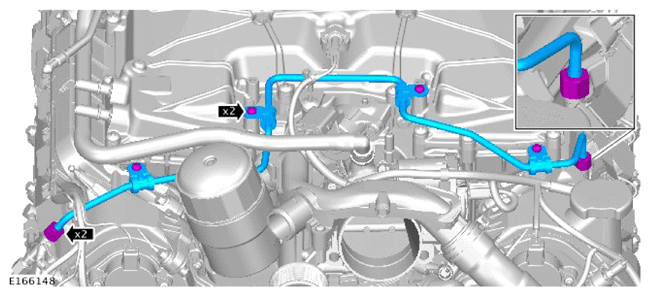

- Remove the 2 bolts.
- Release the 2 fuel unions.
- Remove and discard the HP fuel delivery lines.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

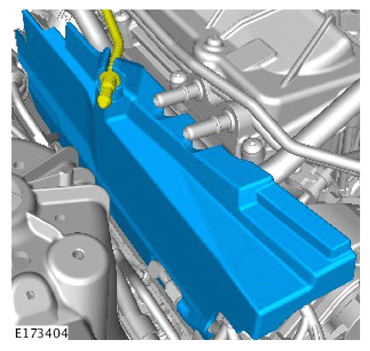

Remove the NVH material.
CAUTION: Be prepared to collect escaping oil.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

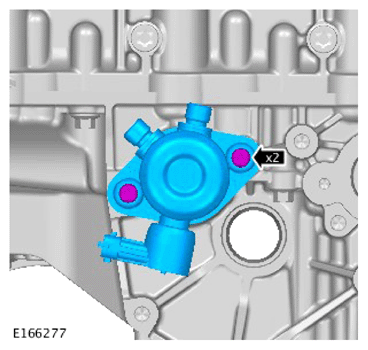

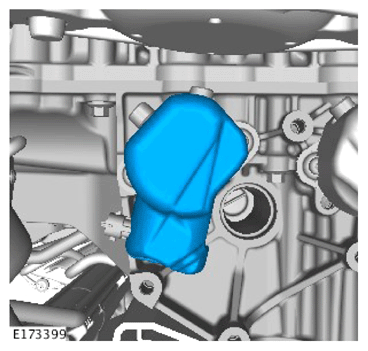

- Loosen the bolts a turn each at a time.
- Remove the HP fuel pump.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

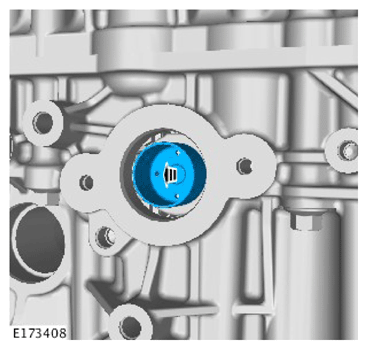

Remove the HP fuel pump tappet.
