Left Fuel Rail (G2244112): Installation

WARNING: This page is about a different variant/trim than selected.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

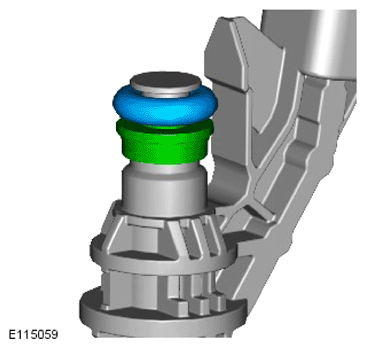

Install new fuel injector O-ring seals to the 4 fuel injectors.

Renew Part: Fuel Injector replacement kits Quantity: 4 .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install new Teflon seals on the lower tips of the 4 injectors from the fuel injector replacement kit.

Special Tool(s): 310-198
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

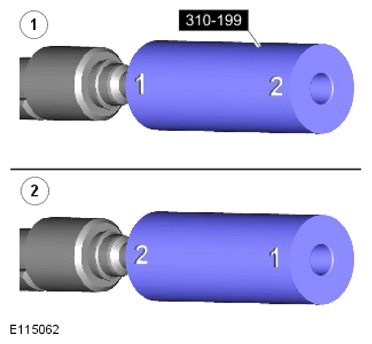

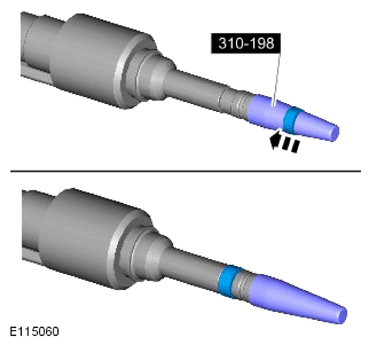

Using the special tool, re-shape the Teflon seal.

Special Tool(s): 310-199
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

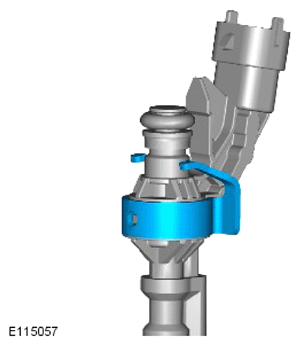

Install new fuel injector clamps to the 4 injectors from the fuel injector replacement kit.
CAUTION: If a new cylinder head has been installed then the special tool 310-200-02 without the thread must be used to install the fuel rail.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

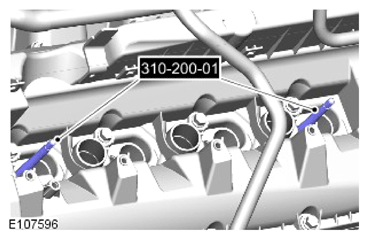

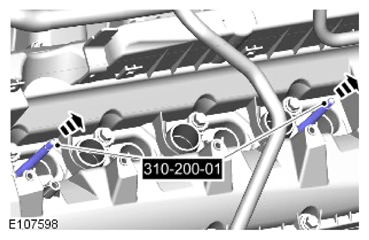

Install the special tool.

Special Tool(s): 310-200-01 , 310-200-02
CAUTION:
- Make sure that the area around the open fuel injector ports are clean and free of foreign material and lubricant prior to installing the fuel injector(s).
- When installing the fuel injector(s), make sure that the Teflon seal is clean and free of foreign material and lubricant.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

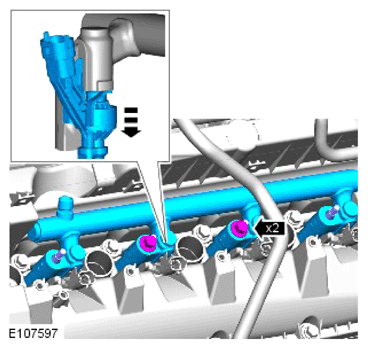

Install the 4 fuel injectors.
CAUTION:
- If new fuel injectors are installed, a new injector clamp must be installed.
- Make sure that the fuel injector is aligned and installed into the fuel rail correctly, as noted in the removal step.
- Tighten the fuel rail bolts a turn at a time until the correct torque is achieved.
NOTE:
- Lubricate the fuel injector O-ring seals with clean engine oil.
- Do not fully tighten the bolts at this stage.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the fuel rail and the 2 bolts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the special tool.

Remove the Special Tool(s): 310-200-01 , 310-200-02
NOTE: Do not fully tighten the bolts at this stage.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

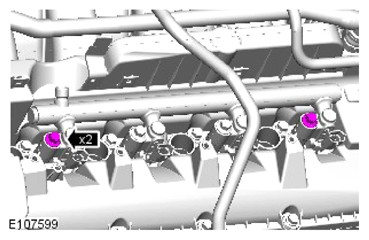

Install the 2 bolts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

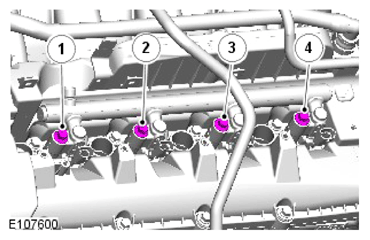

Tighten the 4 bolts in the sequence illustrated.

Torque : 30 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

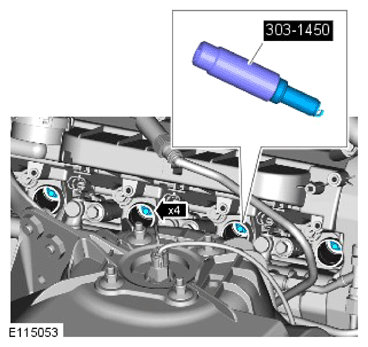

Using the special tool, install the 4 spark plugs.

Special Tool(s): 303-1450

Torque : 22 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

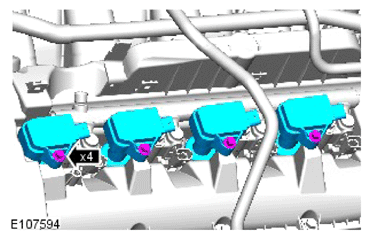

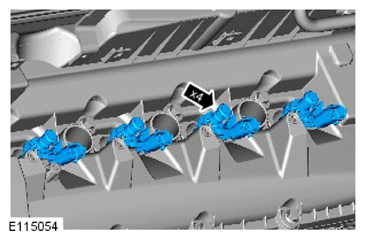

- Install the 4 ignition coils.
- Install and tighten the 4 bolts.
  Torque : 7 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

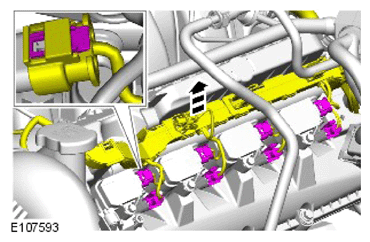

Connect the 8 electrical connectors.
Install the engine undershield.
Refer to: ENGINE UNDERSHIELD - V8 S/C 5.0L PETROL .
CAUTION: Lubricate only the union threads with clean engine oil.

NOTE: Do not tighten at this stage.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

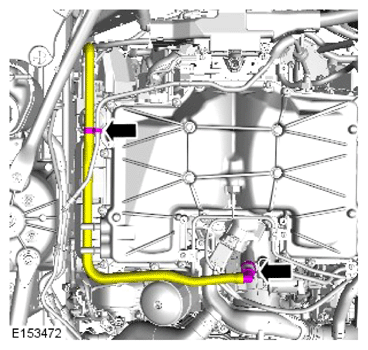

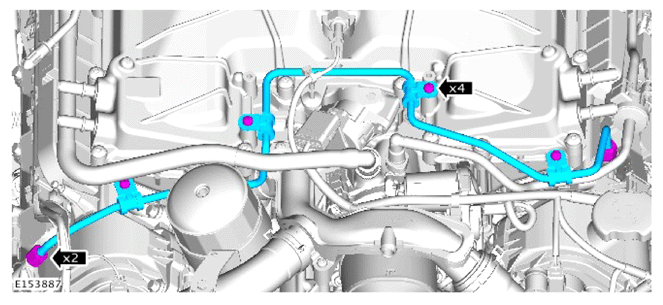

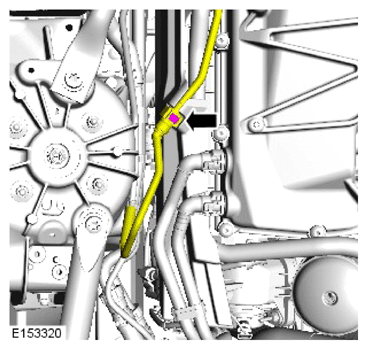

Install the fuel line and the 4 bolts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Tighten the 4 bolts and 2 fuel line unions.

Torque

Unions: 21 Nm

Bolts: 8 Nm
Install the air filter outlet pipe T-connector.
Refer to: AIR FILTER OUTLET PIPE T-CONNECTOR .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the clip and connect the breather pipe.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

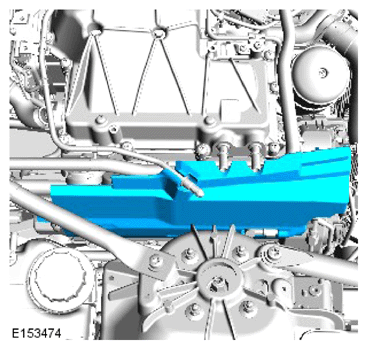

Install the Noise Vibration and Harshness (NVH) material.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

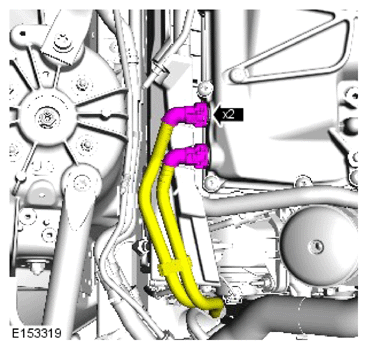

Connect the 2 right side coolant hoses to the charge air cooler.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the vacuum pipe.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

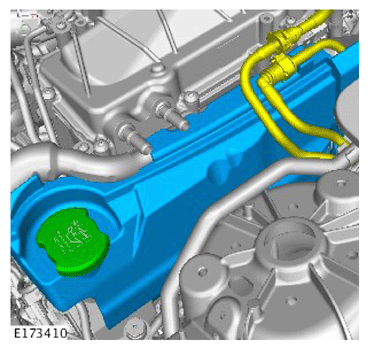

Install the NVH material and the oil filler cap.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

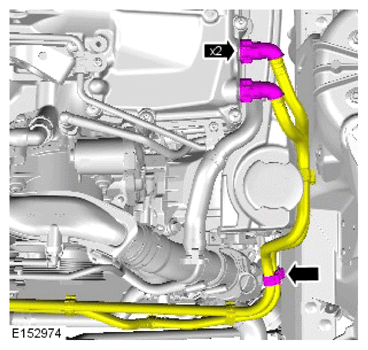

Install the clip and connect the 2 left side coolant hoses.
Vacuum fill the cooling system.
Refer to: COOLING SYSTEM PARTIAL DRAINING AND VACUUM FILLING .
Connect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT .
