Fuel Rails And Cross-Over Pipe
WARNING: This page is about a different variant/trim than selected.

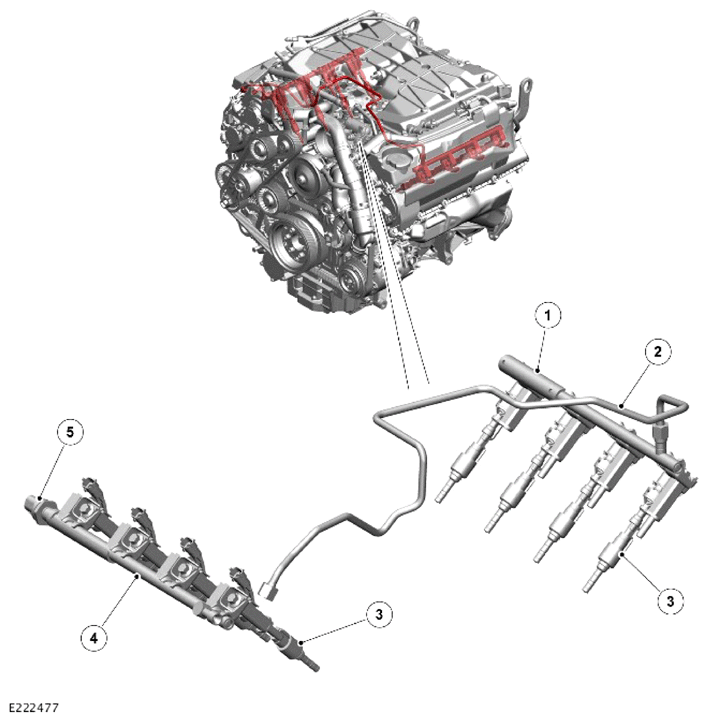

| ITEM | DESCRIPTION |
|---|---|
| 1 | Fuel rail - Bank 2 |
| 2 | Cross-over pipe |
| 3 | Fuel injector (8 off) |
| 4 | Fuel rail - Bank 1 |
| 5 | Fuel Rail Pressure and Temperature (FRPT) Sensor |
The fuel rails and cross-over pipe are made from stainless steel. Bolts attach each fuel rail to the related cylinder head. The cross-over pipe connects the front High Pressure (HP) fuel line to the Bank 2 fuel rail, which makes sure that there is equal pressure in the 2 fuel rails. The cross-over pipe is attached to the charge air cooler tank top by 4 P-clips.
The rear of the Bank 1 fuel rail incorporates a threaded boss for installation of the Fuel Rail Pressure and Temperature (FRPT) sensor.
