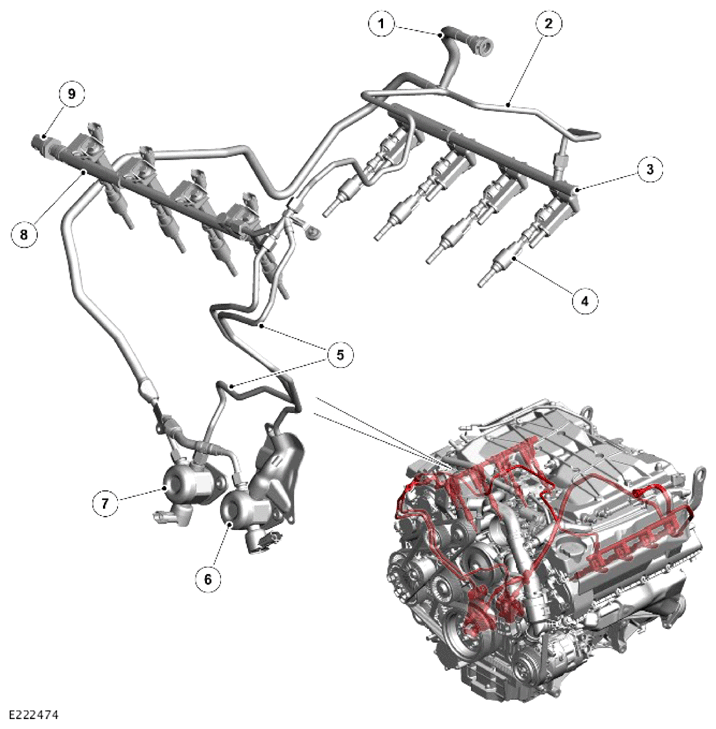

Component Location
WARNING: This page is about a different variant/trim than selected.
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
| ITEM |
DESCRIPTION |
| 1 |
Low Pressure (LP) fuel line |
| 2 |
Cross-over pipe |
| 3 |
Fuel rail - Bank 2 |
| 4 |
Fuel injector (8 off) |
| 5 |
High Pressure (HP) fuel lines |
| 6 |
Front (1) HP fuel pump |
| 7 |
Rear (2) HP fuel pump |
| 8 |
Fuel rail - Bank 1 |
| 9 |
Fuel Rail Pressure and Temperature (FRPT) Sensor |
