Rear Silencer (G2343200): Removal

WARNING: This page is about a different variant/trim than selected.

WARNING: Observe due care when working near a hot exhaust system.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

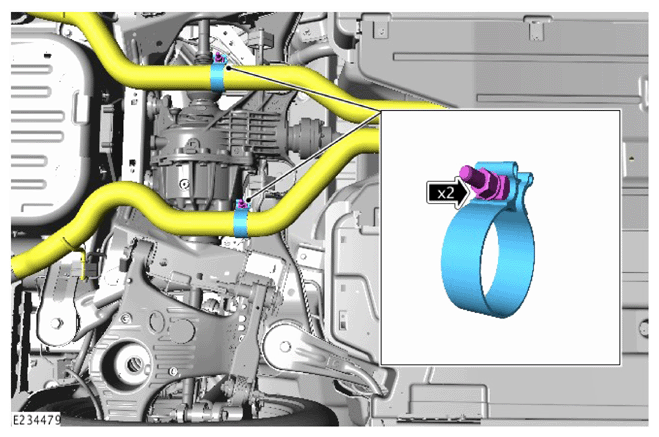

Remove and discard the 2 exhaust clamps.
CAUTION: Take extra care not to damage the surrounding components.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Disconnect the electrical connector.
- Release the wiring harness clip.

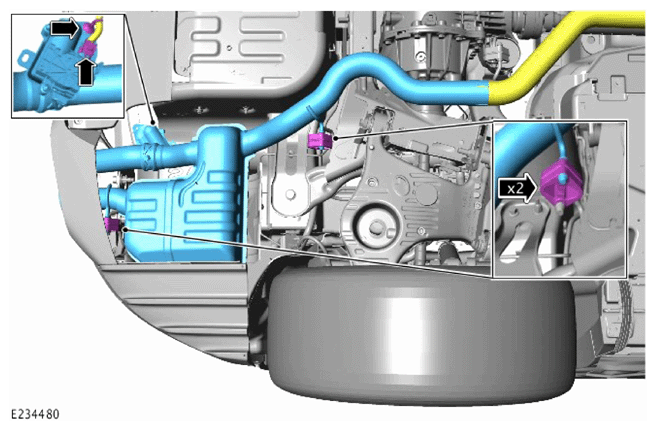

- Remove the 2 exhaust hanger brackets from the rear left exhaust silencer.
- With the aid of another technician, carefully remove the rear left exhaust silencer.
CAUTION: Take extra care not to damage the surrounding components.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

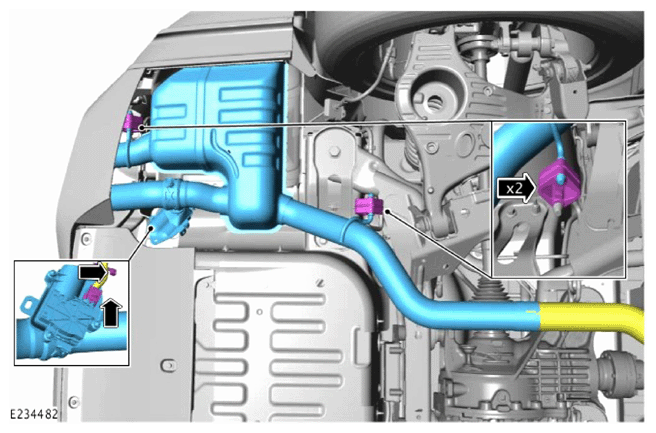

- Disconnect the electrical connector.
- Release the wiring harness clip.
- Remove the 2 exhaust hanger brackets from the rear right exhaust silencer.
- With the aid of another technician, carefully remove the rear right exhaust silencer.
NOTE:
- Do not disassemble further if the component is removed for access only.
- This step is required for the left and the right rear exhaust silencer.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

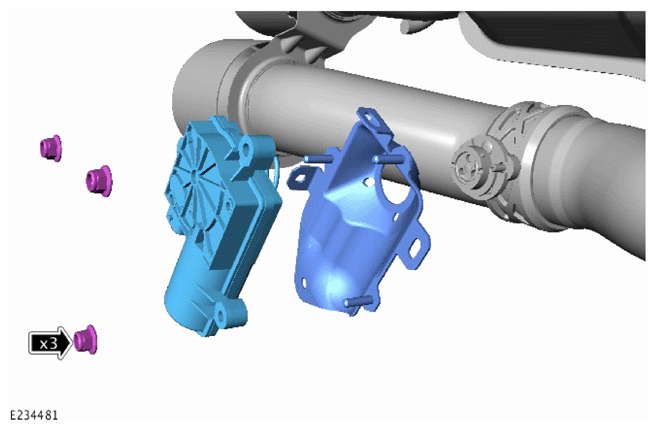

- Remove the 3 nuts.
- Remove the exhaust sound electrical valve actuator.
