Left Catalytic Converter (G2272665): Installation

WARNING: This page is about a different variant/trim than selected.

NOTE:
- This step is only required if previously removed.
- Make sure that a suitable anti seize grease is applied to the sensor thread.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

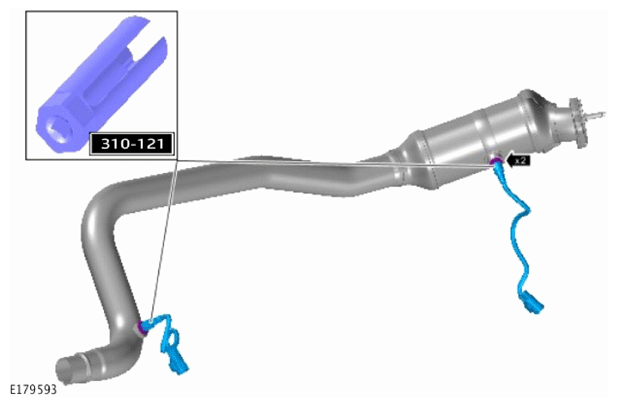

Using the special tool Install and tighten the Heated Oxygen Sensor (H02S).

Special Tool(s): 310-121

Torque : 48 Nm
- Install the left catalytic converter.
- Install and tighten the 2 nuts.
  Renew Part: Exhaust manifold nuts Quantity: 2 .

  Torque : 40 Nm
- Connect the HO2S electrical connector.
- Install the wiring harness to the clip.
- Install the heatshield.
- Install and tighten the 3 bolts.
  Torque : 9 Nm
- Connect the HO2S electrical connector.
- Install the wiring harness to the 2 clips.
Install the front silencer.
Refer to: FRONT SILENCER
Install the engine undershield.
Refer to: ENGINE UNDERSHIELD - V8 S/C 5.0L PETROL
