Front Silencer (G2271325): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE:

This procedure contains illustrations showing certain components removed to provide extra clarity.
This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

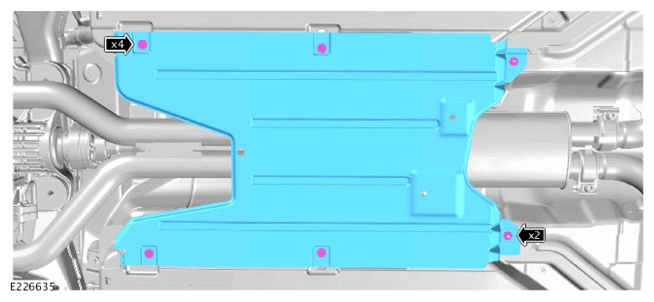

- Remove the 4 bolts.
- Remove the 2 nuts.
- Remove the center body undershield.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

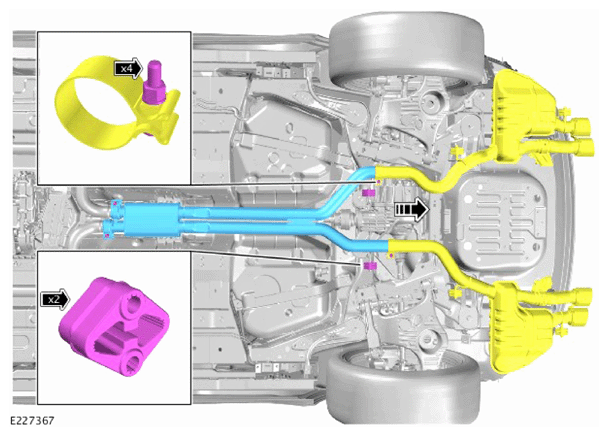

- Release the 4 clamps.
- Release the 2 mounting rubbers.
- Remove the front silencer.
CAUTION: Do not do the following step(s) if a new component is to be installed.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

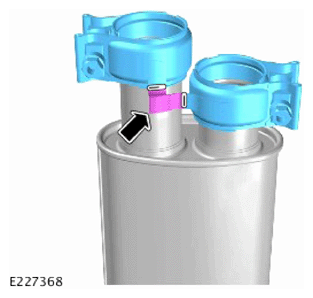

Remove the clamps using a suitable tool.
