Front Silencer (G2271325): Installation

WARNING: This page is about a different variant/trim than selected.

CAUTION: Do not do the following step(s) if a new component is to be installed.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

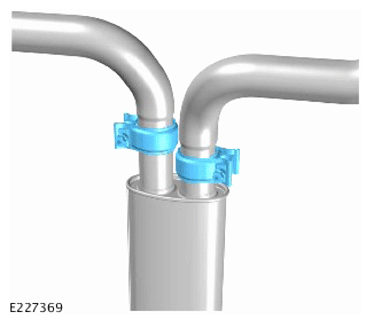

Install the 2 new clamps.

Renew Part: Exhaust clamp Quantity: 2 .
- Install the 2 new clamps.
  Renew Part: Exhaust clamp Quantity: 2 .
- Install and secure the front silencer with the 2 mounting rubbers.
- Secure the 2 clamps.
  Torque : 55 Nm
- Install the center body undershield.
- Install and tighten the 2 nuts and 4 bolts.
  Torque : 7 Nm
