Exhaust System - V8 S/C 5.0L Petrol (G2263555): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
Remove the rear silencer.
Refer to: REAR SILENCER
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

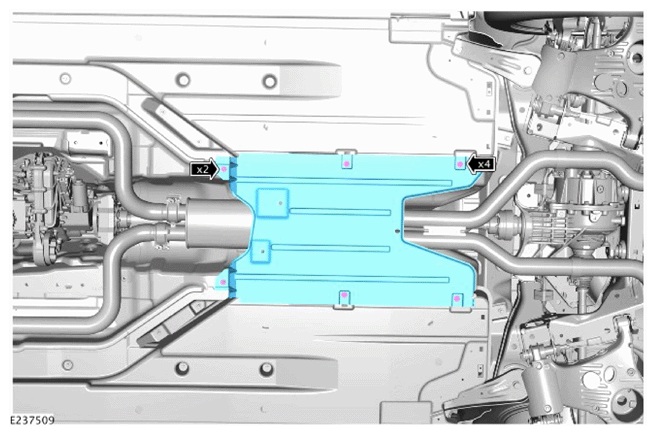

- Remove the 4 bolts.
- Remove the 2 nuts.
- Remove the center body undershield.
NOTE: This step requires the aid of another technician.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

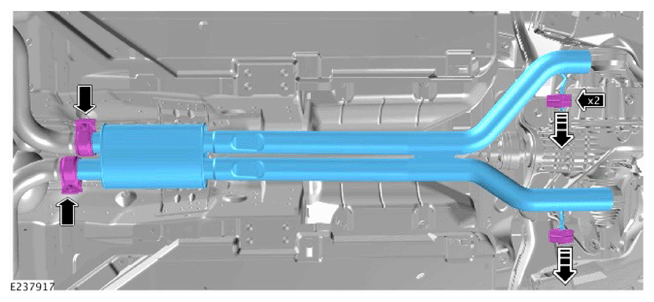

- Remove and discard the 2 clamps.
- Release the 2 mounting rubbers.
- With assistance, remove the front silencer.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

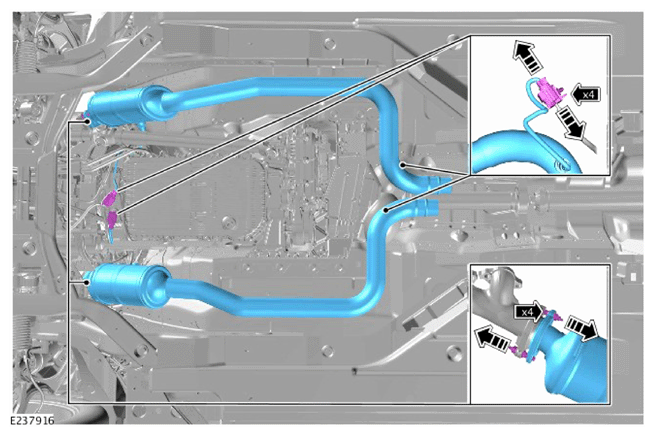

- Disconnect the 4 Heated Oxygen Sensor (HO2S) electrical connectors.
- Remove the 4 nuts.
- Remove the 2 catalytic converters.
