Rear Section
WARNING: This page is about a different variant/trim than selected.
NOTE:
Left side is shown, right side is similar.

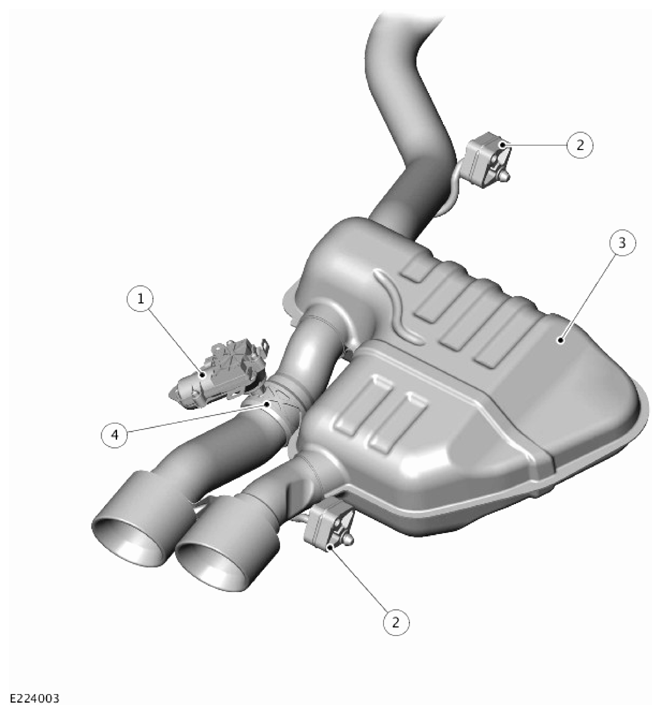

| ITEM | DESCRIPTION |
|---|---|
| 1 | Active exhaust actuator |
| 2 | Mounting rubber (quantity 2) |
| 3 | Rear silencer |
| 4 | Active exhaust valve |
An exhaust valve is installed on the outlet pipe of each rear silencer, which is the part of the active exhaust system. The exhaust gases are expelled through 2 outlet pipes on each of the rear silencers. Polished stainless steel finishers are welded onto the outlet pipes.
