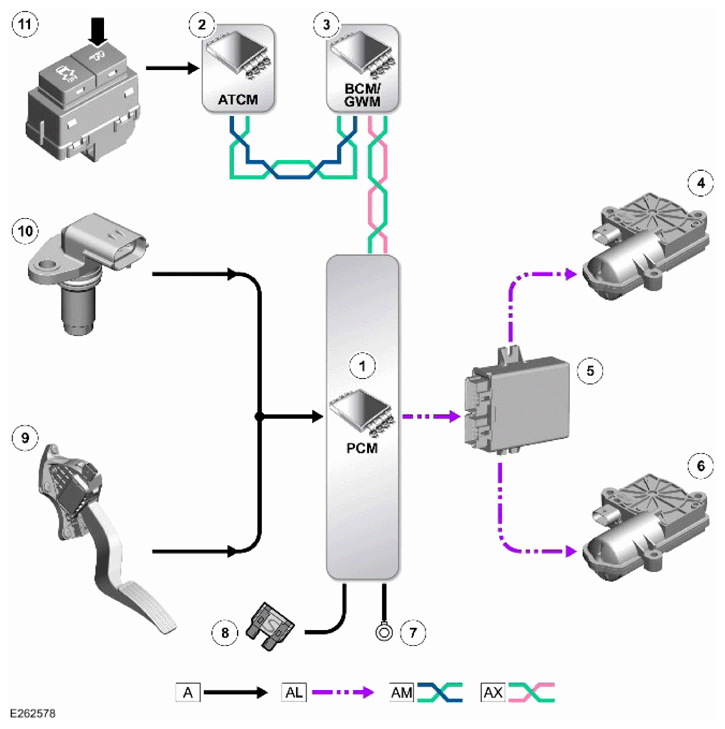

Control Diagram
WARNING: This page is about a different variant/trim than selected.
A = HARDWIRED: AL = PULSE WIDTH MODULATED (PWM): AM = HS CAN CHASSIS SYSTEMS BUS: AX = FLEXRAY BUS.
| ITEM | DESCRIPTION |
|---|---|
| 1 | PCM |
| 2 | ATCM |
| 3 | BCM /GWM |
| 4 | Right active exhaust actuator |
| 5 | Active Exhaust Module (AEM) |
| 6 | Left active exhaust actuator |
| 7 | Ground |
| 8 | Power supply |
| 9 | APP sensor |
| 10 | Crankshaft Position Sensor (CKP) |
| 11 | Active exhaust switch |
