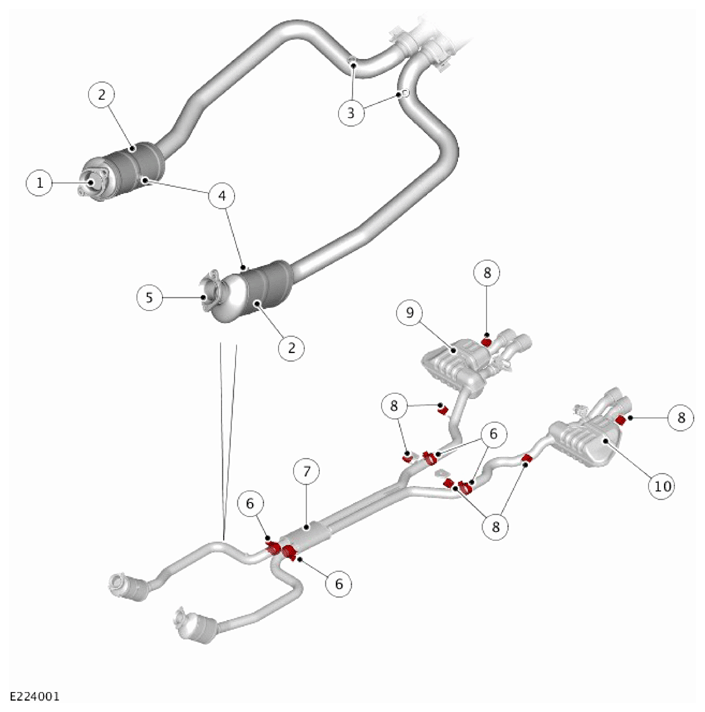

Component Location - 1 Of 2
WARNING: This page is about a different variant/trim than selected.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Flange connection to exhaust manifold - Bank 1 |
| 2 | Catalytic converter (CAT) and Gasoline Particulate Filter (GPF) assembly (quantity 2) |
| 3 | Threaded hole - Post catalyst Heated Oxygen Sensor (HO2S) (quantity 2) |
| 4 | Threaded hole - Mid catalyst HO2S (quantity 2) |
| 5 | Flange connection to exhaust manifold - Bank 2 |
| 6 | Clamp (quantity 4) |
| 7 | Center silencer |
| 8 | Mounting rubber (quantity 6) |
| 9 | Rear right silencer |
| 10 | Rear left silencer |
