Component Torque Location
WARNING: This page is about a different variant/trim than selected.
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
TORQUE SPECIFICATIONS
| |
DESCRIPTION |
NM |
LB-FT |
LB-IN |

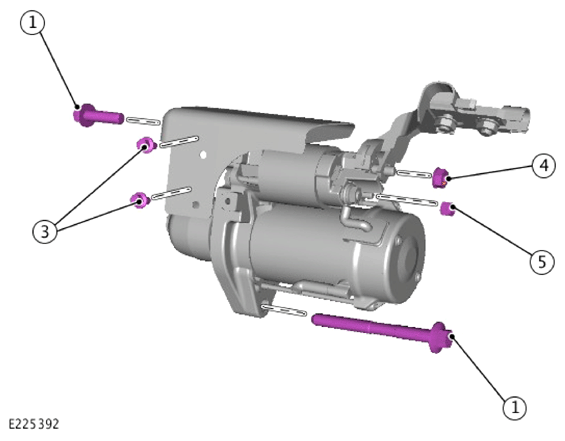

| 1 |
Starter motor bolts |
48 |
35 |
- |
| 2 |

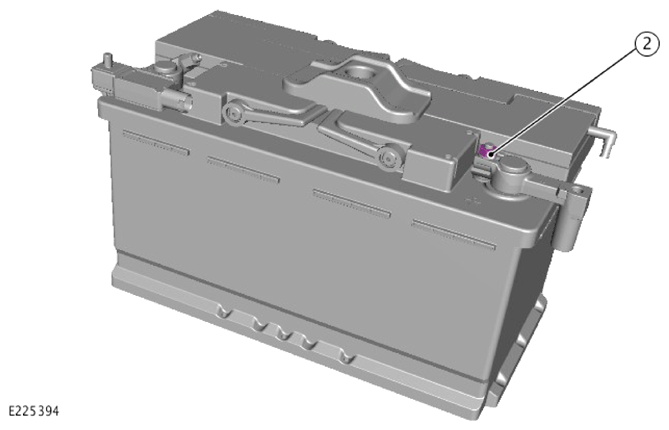

Startup battery positive terminal nut |
6 |
- |
53 |
| 3 |
Starter motor heat shield bolts |
10 |
7 |
- |
| 4 |
Starter motor positive cable nut |
12 |
9 |
- |
| 5 |
Starter motor negative cable nut |
7 |
- |
62 |
