Ignition Switch

WARNING: This page is about a different variant/trim than selected.

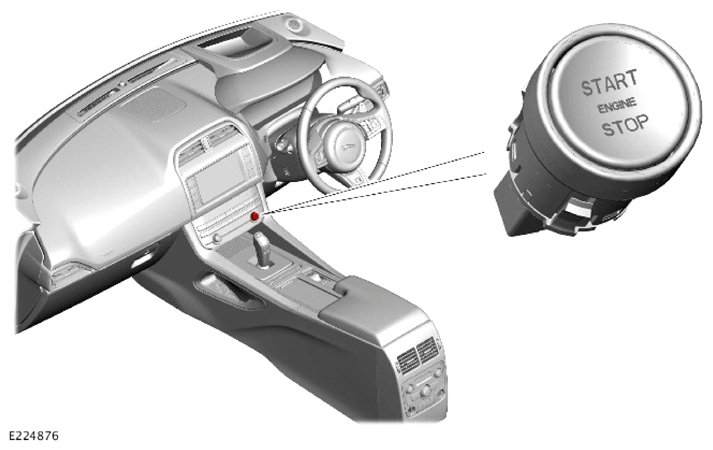

G15621951Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

The ignition switch is installed in the instrument panel and is hardwired to the Body Control Module/Gateway Module (BCM/GWM). When the ignition switch is pressed 2 signal lines from the BCM/GWM are connected to ground.
