Auto Stop/Start Switch (If Equipped)

WARNING: This page is about a different variant/trim than selected.

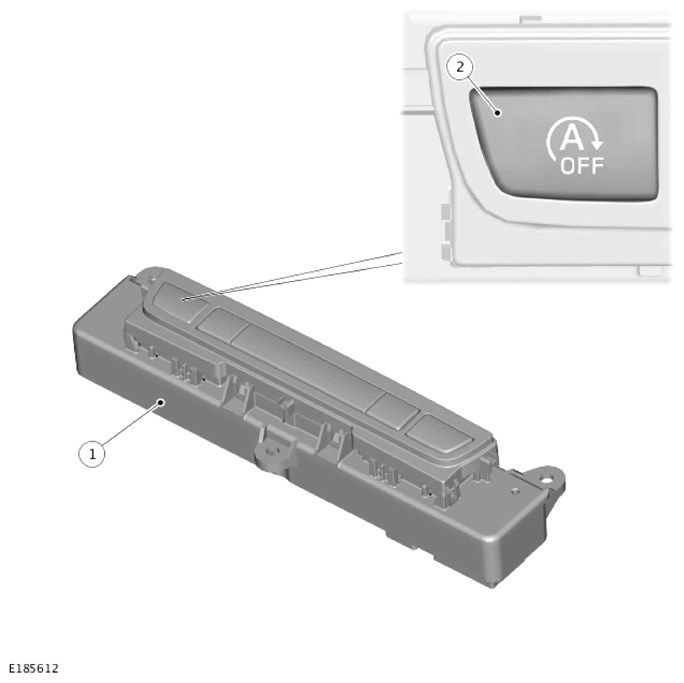

G15621952Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

On vehicles with an auto stop/start system, the auto stop/start switch in the JaguarDrive Control (JDC) is located in the floor console. An amber Light Emitting Diode (LED) in the auto stop/start switch remains illuminated while the auto stop/start system is active. The Powertrain Control Module (PCM) receives the auto stop/start switch selection on the High Speed (HS) Controller Area Network (CAN) chassis systems bus.
