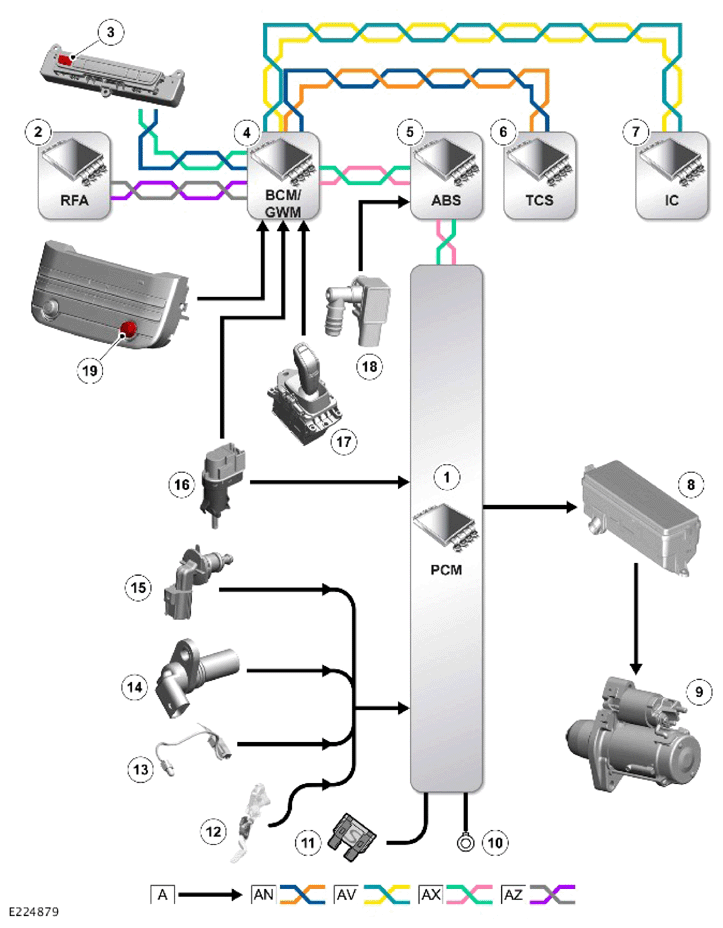

Control Diagram - 2 Of 2 - Starting System With Auto Stop/Start System
WARNING: This page is about a different variant/trim than selected.
A = HARDWIRED: AM = HIGH SPEED (HS) CONTROLLER AREA NETWORK (CAN) CHASSIS SYSTEMS BUS: AN = HS CAN POWERTRAIN SYSTEMS BUS: AV = HS CAN COMFORT SYSTEMS BUS: AX = FLEXRAY: AZ = HS CAN BODY SYSTEMS BUS .
| ITEM | DESCRIPTION |
|---|---|
| 1 | Powertrain Control Module (PCM) |
| 2 | Remote Function Actuator (RFA) |
| 3 | Auto stop/start switch in the JaguarDrive Control (JDC) |
| 4 | Body Control Module/Gateway Module (BCM/GWM) |
| 5 | Anti-lock Brake System (ABS) control module |
| 6 | Transmission Control Switch (TCS) |
| 7 | Instrument Cluster (IC) |
| 8 | Rear Engine Junction Box (EJB) |
| 9 | Starter motor |
| 10 | Ground |
| 11 | Power supply |
| 12 | Accelerator Pedal Position (APP) sensor |
| 13 | Ambient Air Temperature (AAT) sensor |
| 14 | Crankshaft Position (CKP) sensor |
| 15 | Engine Coolant Temperature (ECT) sensor |
| 16 | Brake pedal switch |
| 17 | Transmission Control Switch (TCS) - Park (P)/Neutral (N) signal |
| 18 | Brake vacuum sensor |
| 19 | Ignition switch |
