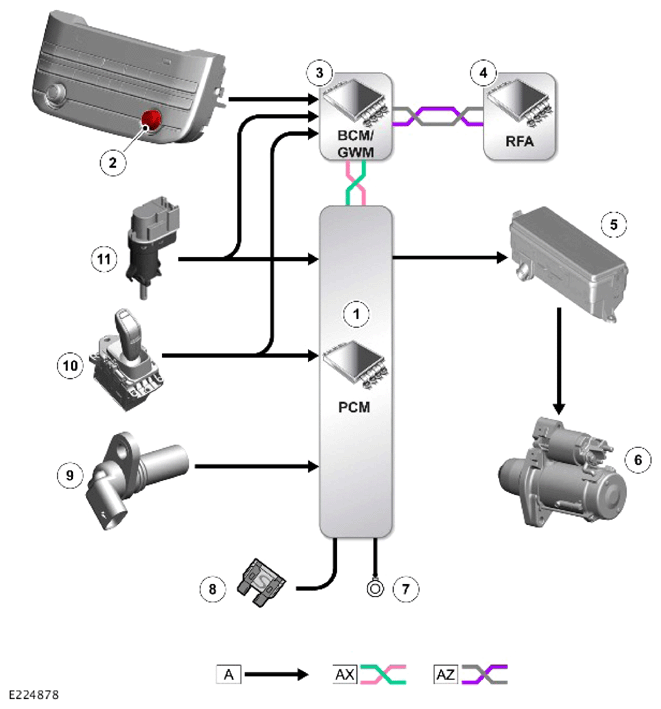

Control Diagram - 1 Of 2 - Starting System Without Auto Stop/Start System
WARNING: This page is about a different variant/trim than selected.
A = HARDWIRED: AX = FLEXRAY: AZ = HIGH SPEED (HS) CONTROLLER AREA NETWORK (CAN) BODY SYSTEMS BUS .
| ITEM | DESCRIPTION |
|---|---|
| 1 | Powertrain Control Module (PCM) |
| 2 | Ignition switch |
| 3 | Body Control Module/Gateway Module (BCM/GWM) |
| 4 | Remote Function Actuator (RFA) |
| 5 | Rear Engine Junction Box (EJB) |
| 6 | Starter motor |
| 7 | Ground |
| 8 | Power supply |
| 9 | Crankshaft Position (CKP) sensor |
| 10 | Transmission Control Switch (TCS) - Park/neutral signal |
| 11 | Brake pedal switch |
