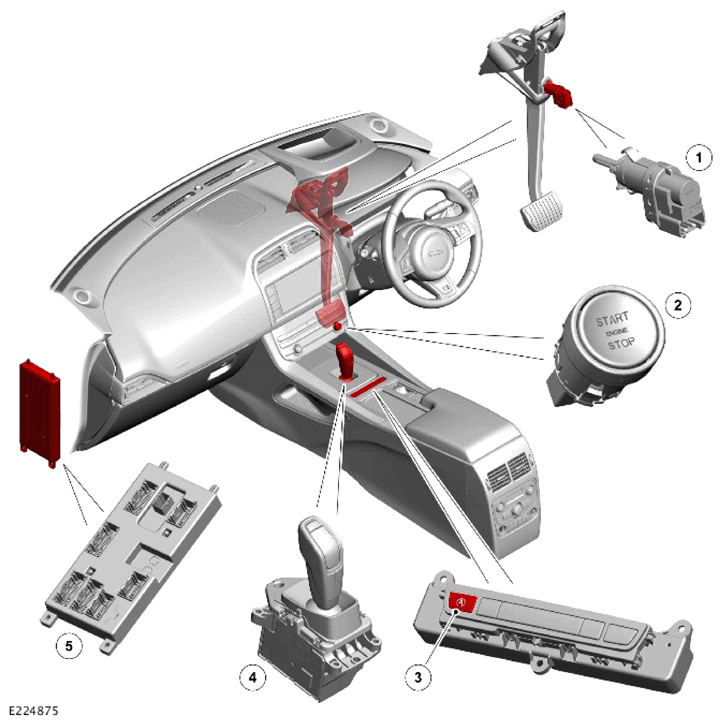

Component Location - 2 Of 2
WARNING: This page is about a different variant/trim than selected.
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
| ITEM |
DESCRIPTION |
| 1 |
Brake pedal switch |
| 2 |
Ignition switch |
| 3 |
Auto stop/start switch in the Jagaur Drive Control (JDC) |
| 4 |
Transmission Control Switch (TCS) |
| 5 |
Body Control Module/Gateway Module (BCM/GWM) |
