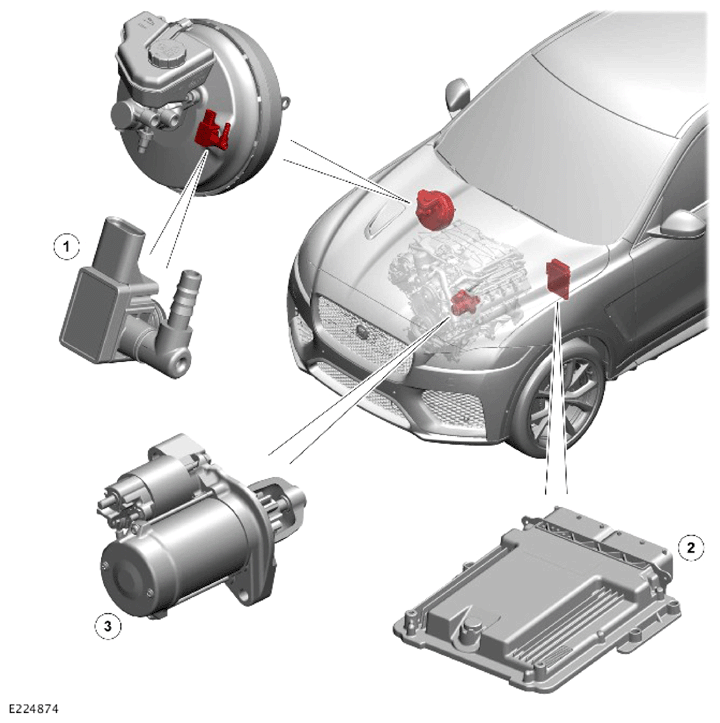

Component Location - 1 Of 2
WARNING: This page is about a different variant/trim than selected.
NOTE:
Right Hand Drive (RHD) vehicle shown, Left Hand Drive (LHD) vehicle similar.
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
| ITEM |
DESCRIPTION |
| 1 |
Brake vacuum sensor |
| 2 |
Powertrain Control Module (PCM) |
| 3 |
Starter motor |
