Thermostat Housing (G2244106): Removal

WARNING: This page is about a different variant/trim than selected.

CAUTION: Be prepared to collect escaping coolant.

NOTE:

Removal steps in this procedure may contain installation details.
Some variation in the illustrations may occur, but the essential information is always correct.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
Drain the cooling system.
Refer to: COOLING SYSTEM DRAINING AND VACUUM FILLING
Remove the air filter outlet pipe T-connector.
Refer to: AIR FILTER OUTLET PIPE T-CONNECTOR
Remove the left air filter.
Refer to: LEFT AIR FILTER HOUSING
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

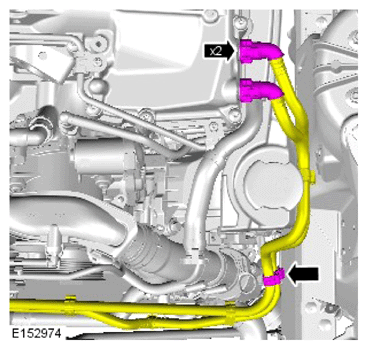

Disconnect the 2 coolant hoses from the charge air cooler and release the clip.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

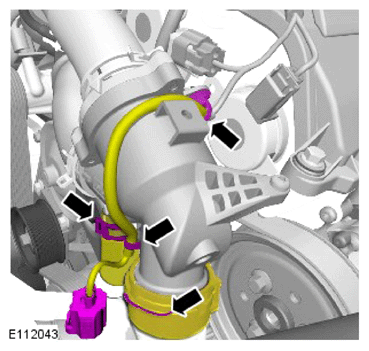

- Disconnect the electrical connector and release the 2 wiring harness clips.
- Disconnect the lower 2 coolant hoses from the thermostat housing.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

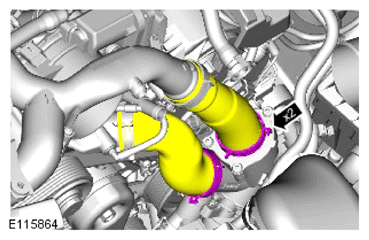

Disconnect the 2 upper coolant hoses from the thermostat housing.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

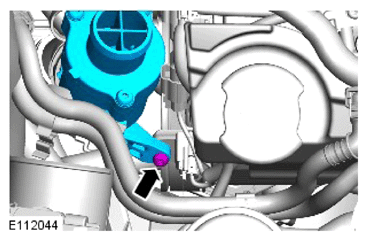

Remove the bolt and thermostat housing.
