Radiator (G2244105): Notes

WARNING: This page is about a different variant/trim than selected.
26.40.01 RADIATOR ASSEMBLY - RENEW 2000 CC, AJ21, DIESEL 1.80

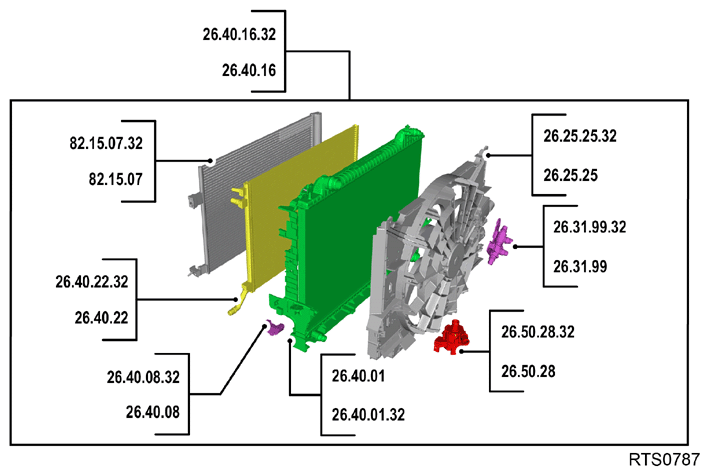

G15621140Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
26.40.01 RADIATOR ASSEMBLY - RENEW 2000 CC, INGENIUM PETROL 1.70

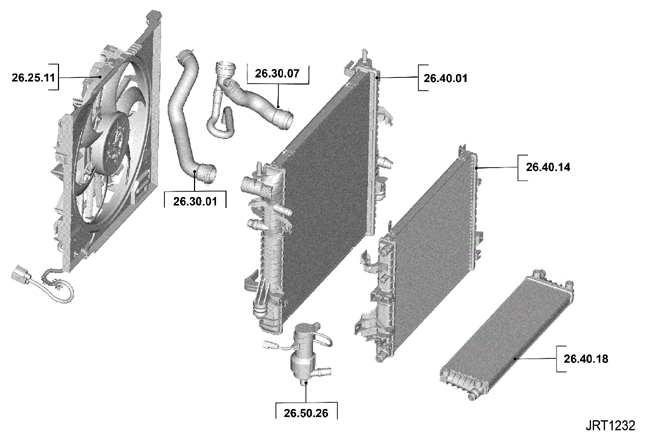

G15621141Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
26.40.01 RADIATOR ASSEMBLY - RENEW 3000 CC, INGENIUM DIESEL 3.80
G15621142Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
26.40.01 RADIATOR ASSEMBLY - RENEW 3000 CC, INGENIUM PETROL 3.80
G15621143Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
26.40.01 RADIATOR ASSEMBLY - RENEW 5000 CC, AJ V8, SUPERCHARGED 1.40

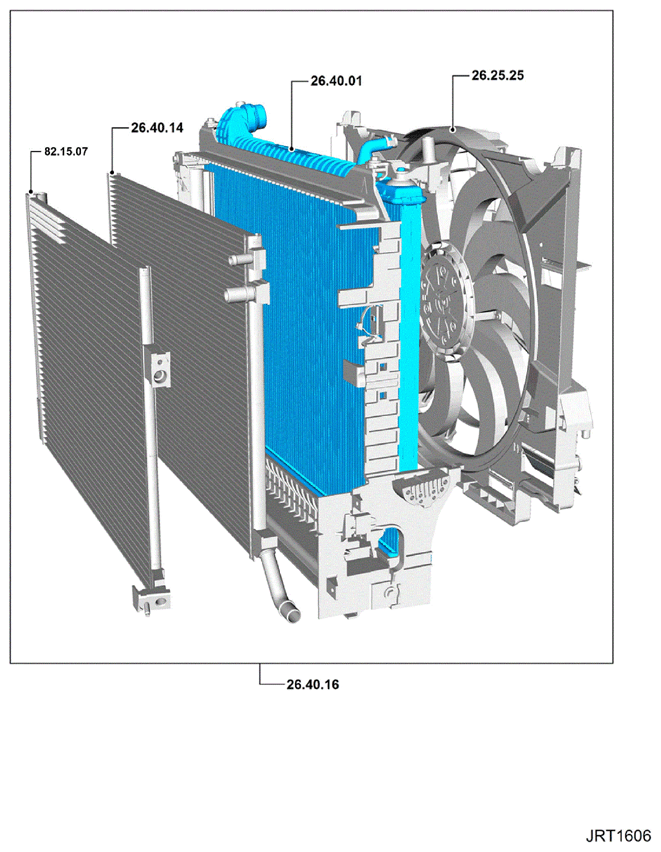

G15621144Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
26.40.14 SUPER CHARGER RADIATOR - RENEW 5000 CC, AJ V8, SUPERCHARGED 2.60

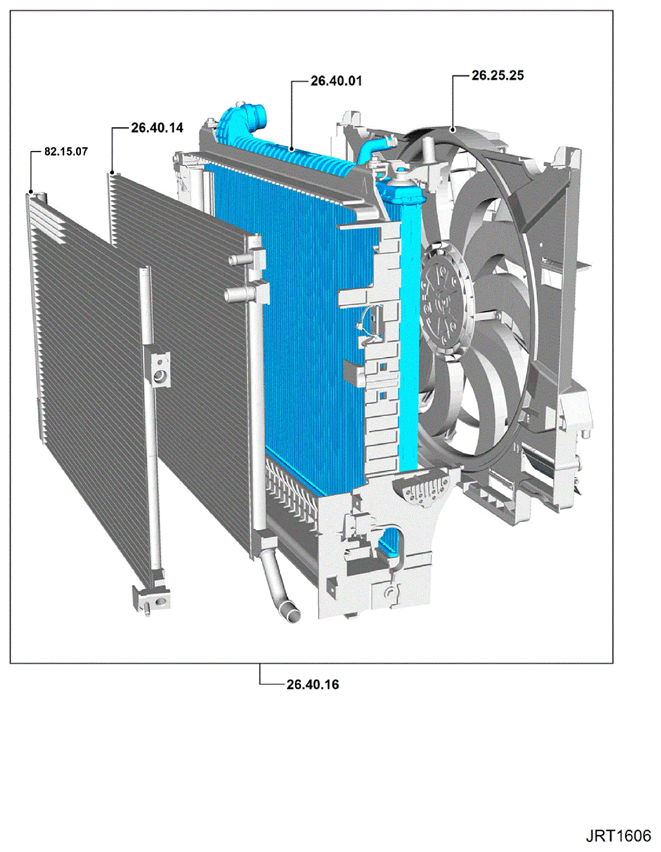

G15621145Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
