Electric Cooling Fan And Shroud (G2244103): Removal

WARNING: This page is about a different variant/trim than selected.

WARNING: Be prepared to collect escaping coolant.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
Disconnect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
Remove the left air filter housing.
Refer to: LEFT AIR FILTER HOUSING
Remove the right air filter housing.
Refer to: RIGHT AIR FILTER HOUSING
Remove the air filter outlet pipe T-connector.
Refer to: AIR FILTER OUTLET PIPE T-CONNECTOR
Drain the cooling system.
Refer to: COOLING SYSTEM PARTIAL DRAINING AND VACUUM FILLING
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

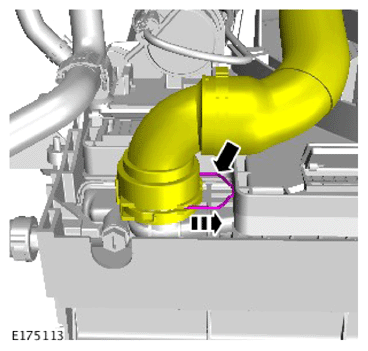

- Disconnect the right lower coolant hose.
- Release the 2 hose retaining clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Disconnect the lower coolant hose from the cooling module.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

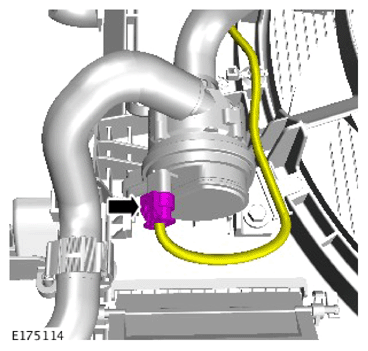

Disconnect the electric coolant pump electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Disconnect the electric coolant pump hose from the cooling module.
- Release the hose from the clip.
- Remove the bolt.
- Release the electric coolant pump from the bracket.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

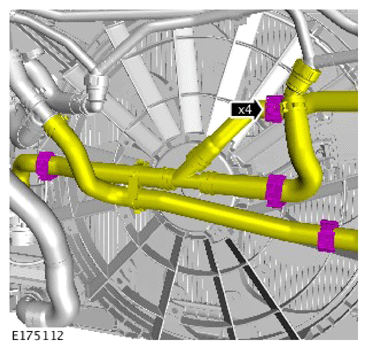

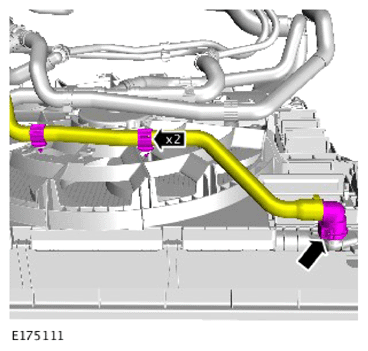

Release the coolant hoses from the 4 clips.
NOTE: If equipped.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

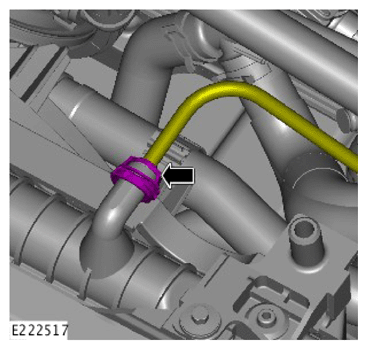

Disconnect the upper bypass pipe from the cooling module.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

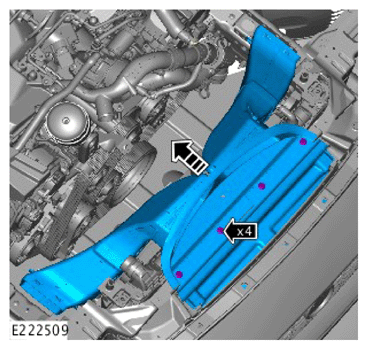

- Remove the 4 fasteners.
- Remove the intake air duct.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

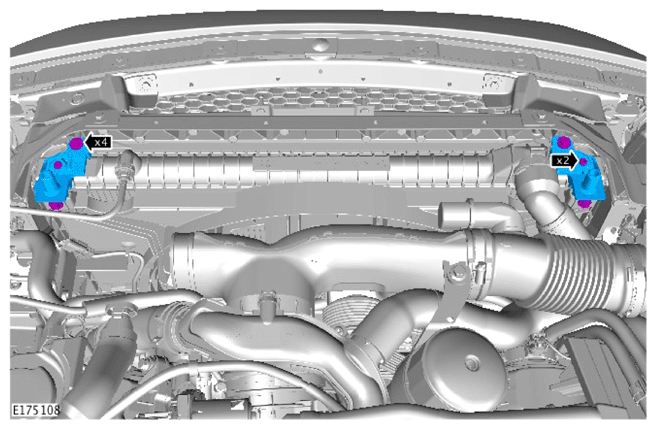

- Remove the 4 bolts.
- Remove the 2 main radiator mounting brackets.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

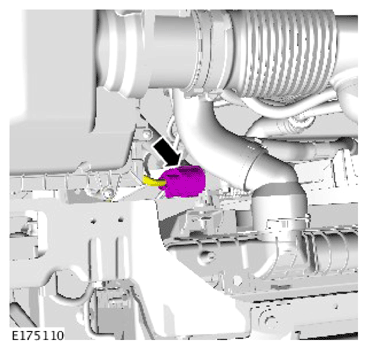

Disconnect the electric coolant pump electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

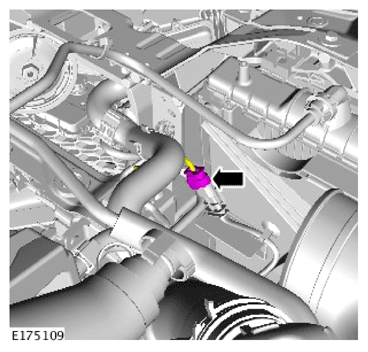

Disconnect the electric cooling fan electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

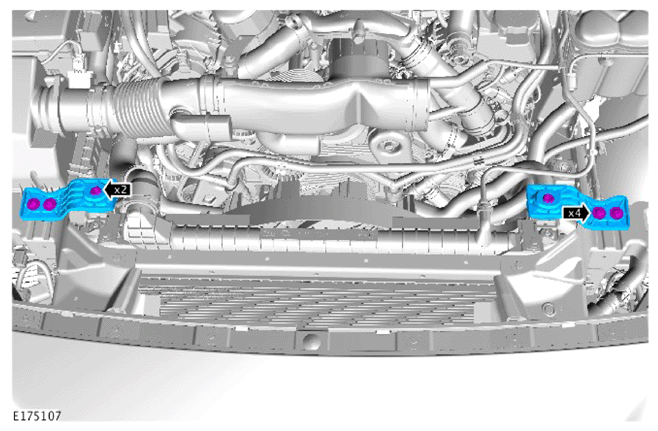

- Remove the 4 bolts.
- Remove the 2 secondary brackets.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

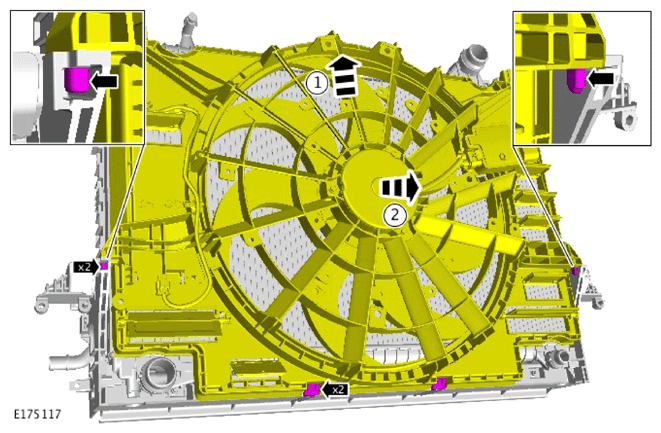

Release the electric cooling fan shroud from the 4 clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

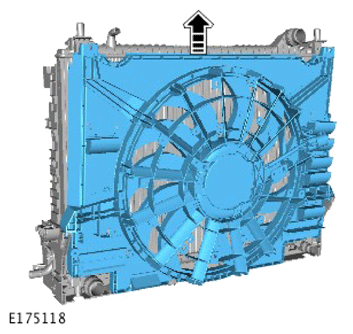

Remove the electric cooling fan shroud from the cooling module.
NOTE: Do not disassemble further if the component is removed for access only.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

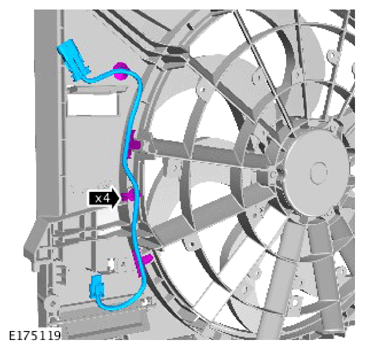

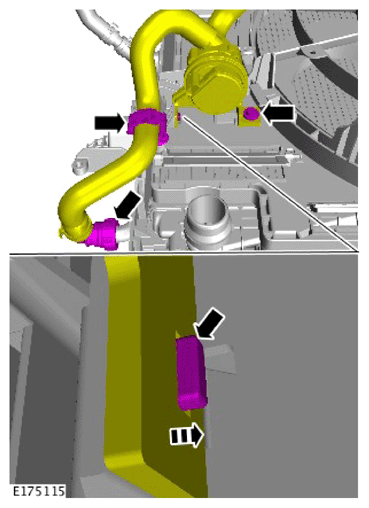

- Release the 4 clips.
- Remove the wiring harness.
