Cooling Module (G2292257): Removal

WARNING: This page is about a different variant/trim than selected.

WARNING:

Cooling fans may continue to operate after the engine is turned off. They may also start to operate after the engine is turned off and continue operating for up to 10 minutes.
Be prepared to collect escaping coolant.

CAUTION: Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all components must be sealed.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle using a suitable 2 post lift.
Refer to: LIFTING
Evacuate the Air Conditioning (A/C) system.
Refer to: AIR CONDITIONING SYSTEM RECOVERY, EVACUATION AND CHARGING
Disconnect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
Remove the engine undershield.
Refer to: ENGINE UNDERSHIELD - V8 S/C 5.0L PETROL
Remove the front bumper.
Refer to: FRONT BUMPER - INGENIUM I4 2.0L DIESEL AJ21/INGENIUM I4 2.0L PETROL/INGENIUM I4 2.0L PETROL - PHEV/INGENIUM I6 3.0L DIESEL/INGENIUM I6 3.0L PETROL
Drain the cooling system.
Refer to: COOLING SYSTEM DRAINING AND VACUUM FILLING
Remove the left air filter outlet pipe.
Refer to: LEFT AIR FILTER OUTLET PIPE
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

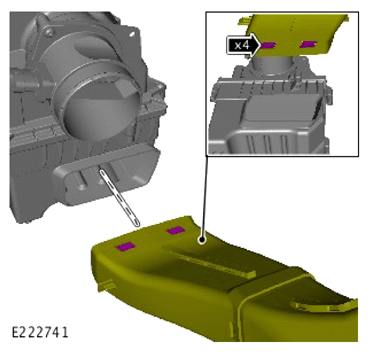

- Disconnect the air duct from the air filter assembly.
- Repeat this step for the other side.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

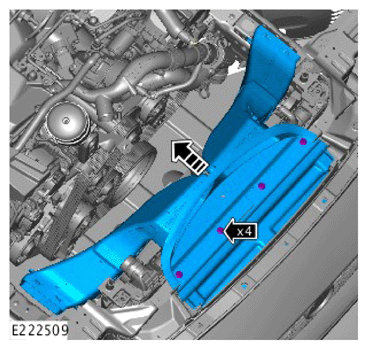

- Remove the 4 screws.
- Remove the air duct.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

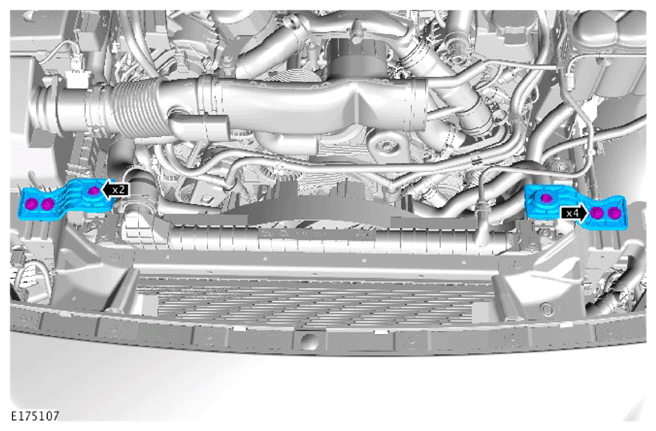

- Remove the 6 bolts.
- Remove the 2 mounting brackets.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

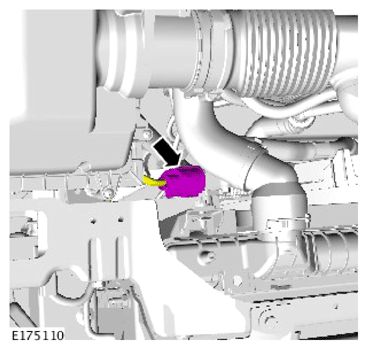

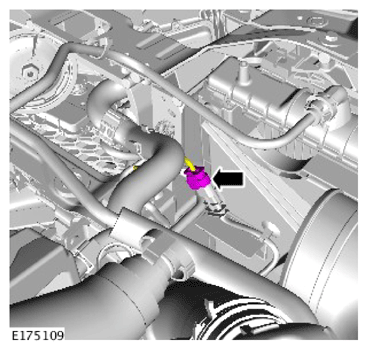

Disconnect the electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Disconnect the electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

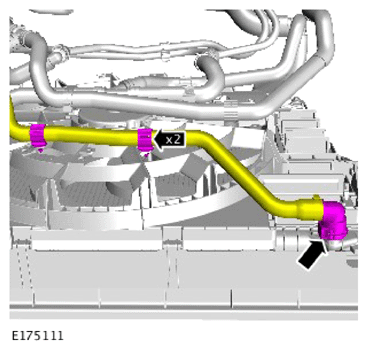

Disconnect the right side lower coolant hose from the radiator and release the 2 clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

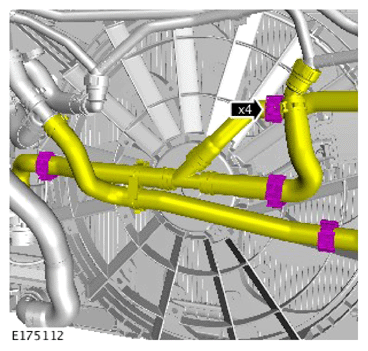

Release the 4 coolant hose clips from the cooling fan shroud.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

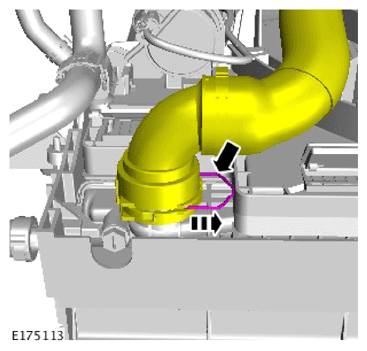

Disconnect the left side coolant hose from the radiator.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

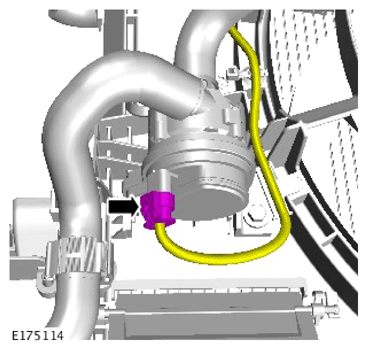

Disconnect the electrical connector from the coolant pump.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

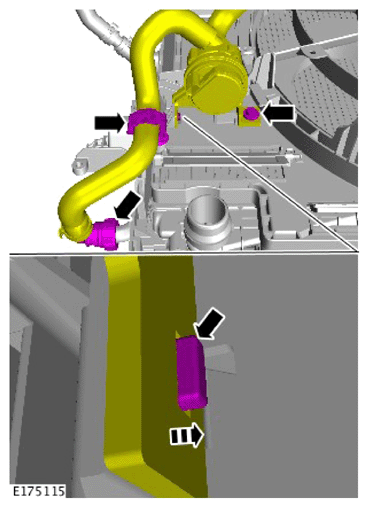

- Disconnect the hose from the charge air radiator and release the clip.
- Remove the bolt and reposition the coolant pump away from the cooling module.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

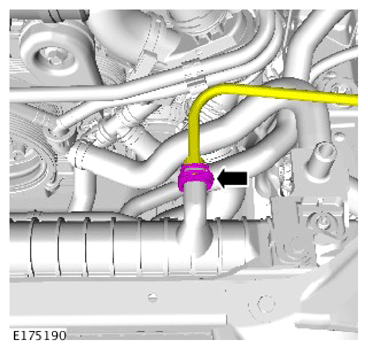

Disconnect the degas pipe.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

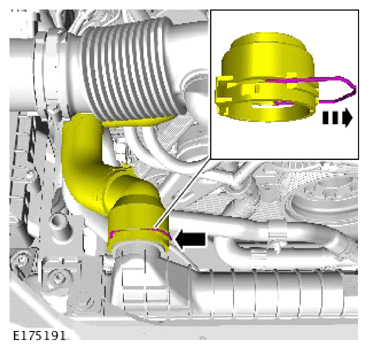

Disconnect the right side upper coolant hose from the radiator.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

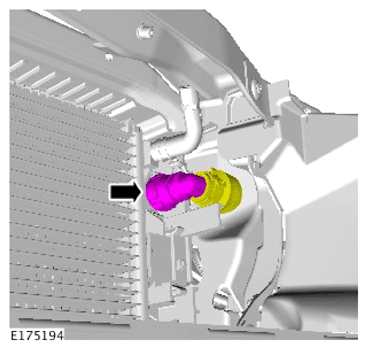

Disconnect the left side coolant hose from the charge air radiator.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

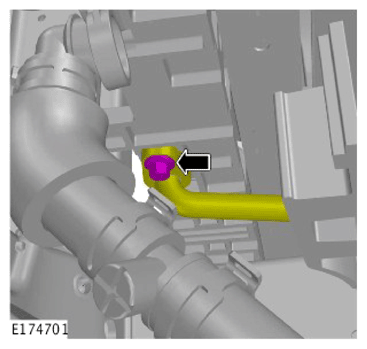

Remove the nut and disconnect the lower A/C pipe from the condenser.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

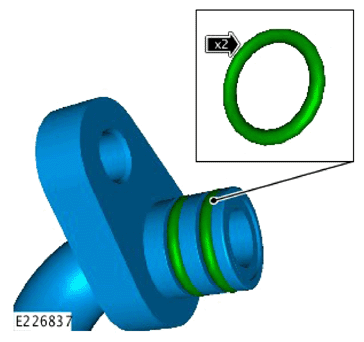

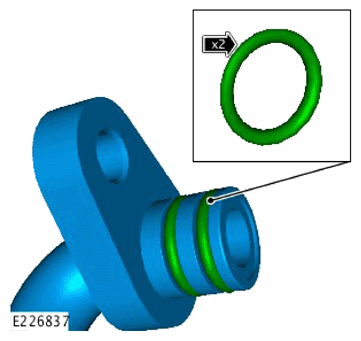

Remove and discard the 2 seals.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

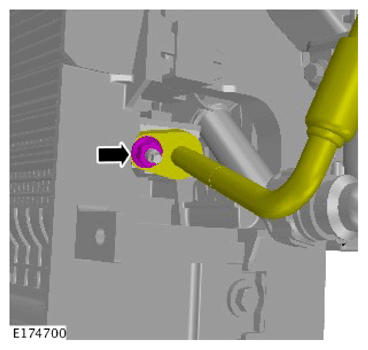

Remove the bolt and disconnect the upper A/C pipe from the condenser.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove and discard the 2 seals.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

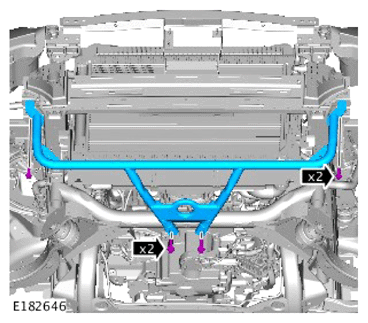

- Remove the 4 bolts.
- Remove the cooling module protector.
CAUTION: Make sure that the cooling module is supported for this step.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

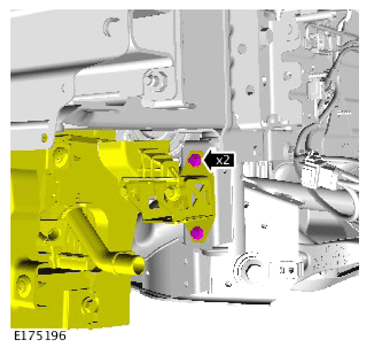

Remove the 2 left side mounting bolts.
CAUTION: Make sure that the cooling module is supported for this step.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

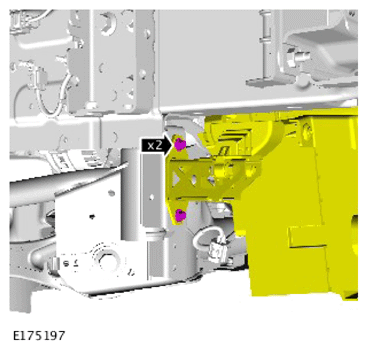

Remove the 2 right side mounting bolts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

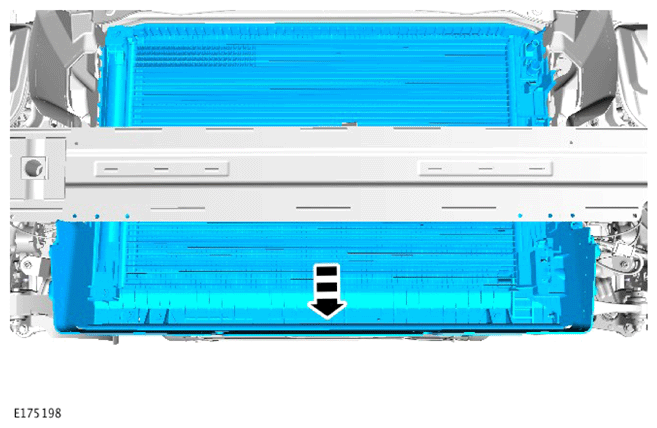

Remove the cooling module.
