Coolant Expansion Tank (G2254546): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Remove the expansion tank cap. Using a suitable syringe, remove the coolant from the expansion tank.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

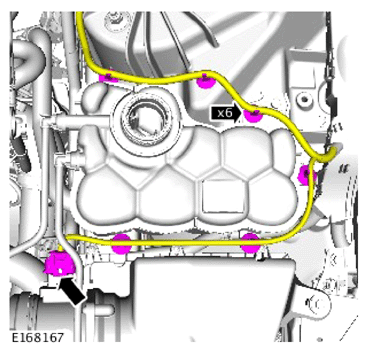

Disconnect the electrical connector and release the wiring harness from the 6 clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

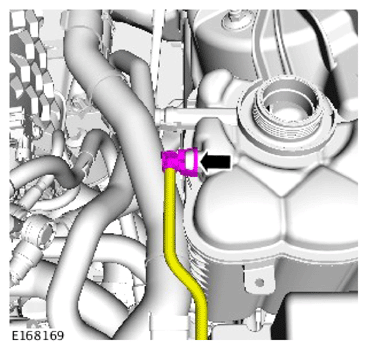

Release the 1 coolant hose from the coolant expansion tank.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

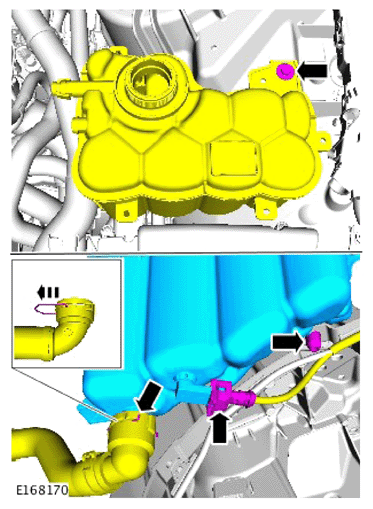

- Remove the bolt and reposition the coolant expansion tank.
- Using a suitable tool clamp the coolant hose.
- Release the electrical connector and hose from the coolant expansion tank.
- Remove the coolant expansion tank.
