Auxiliary Radiator (G2244101): Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING
- Partially drain the cooling system.
Refer to: COOLING SYSTEM PARTIAL DRAINING AND VACUUM FILLING
- Remove the front wheel arch liner.
Refer to: FRONT WHEEL ARCH LINER
-
CAUTION: Be prepared to collect escaping coolant.

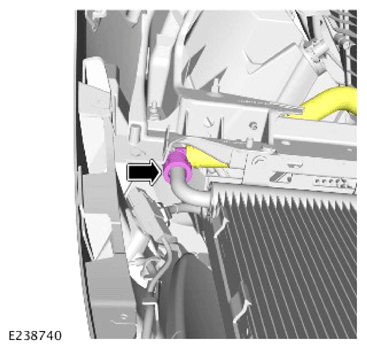

Disconnect the lower coolant hose from the auxiliary radiator.
-
CAUTION: Be prepared to collect escaping coolant.

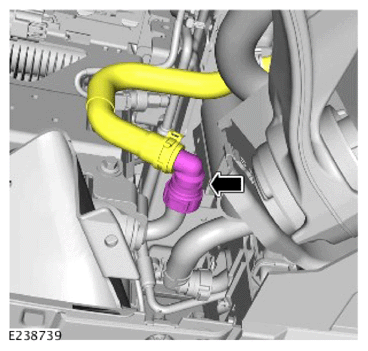

Disconnect the upper coolant hose from the auxiliary radiator.
-
CAUTION: Take extra care not to damage the component.

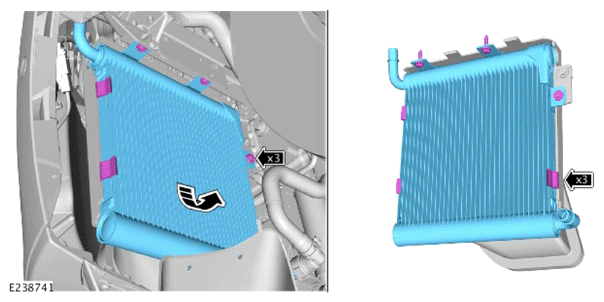

- Remove the 3 bolts.
- Release the 3 clips.
- Remove the auxiliary radiator assembly.
