Cooling System Draining And Vacuum Filling (G2247224): Draining

WARNING: This page is about a different variant/trim than selected.

WARNING:

Injury such as scalding could be caused by escaping steam or coolant. Make sure the vehicle cooling system is cool prior to carrying out this procedure.
Make sure the engine is not running and vehicle cooling system is cool prior to doing this procedure.
Be prepared to collect escaping coolant.

CAUTION: Engine coolant will damage the paint finished surfaces. If spilt, immediately remove the coolant and clean the area with water.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

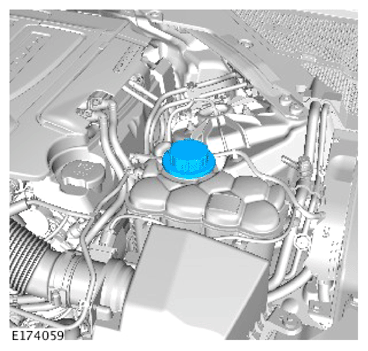

- Cover the expansion tank cap with a thick cloth and release the cooling system pressure by slowly turning the coolant expansion tank cap a quarter of a turn.
- Remove the expansion tank cap.
Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
Remove the engine undershield.
Refer to: ENGINE UNDERSHIELD - V8 S/C 5.0L PETROL
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

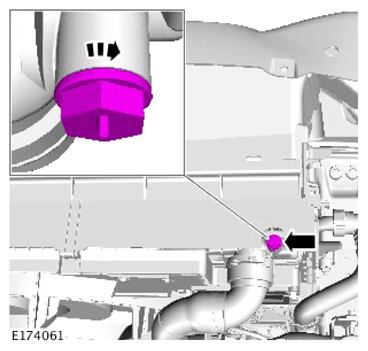

- Remove the radiator drain plug.
- Allow the coolant to drain into a suitable container.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

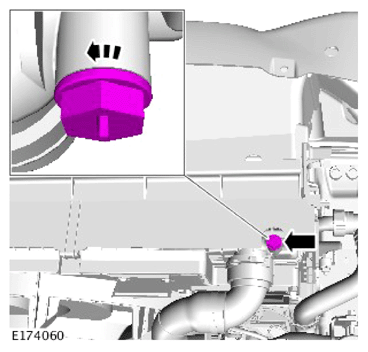

Install the drain plug.

Torque : 3.5 Nm
